| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
145 pcs
|
145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

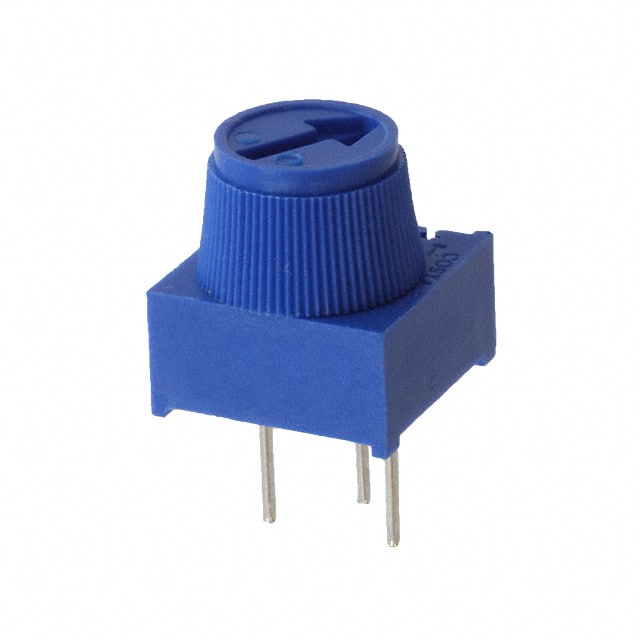

The Bourns 3386P-1-504TLF is a single-turn, sealed trimmer potentiometer from the Trimpot 3386 series. It offers a resistance value of 500 kΩ with a tolerance of ±10% and a power rating of 0.5W at 85°C.
This cermet potentiometer features top finger adjustment and PC pin terminations, making it suitable for through-hole mounting. The device operates within a temperature range of -55°C to +125°C and has a temperature coefficient of ±100ppm/°C.
Key electrical characteristics include an insulation resistance of 1,000 megohms minimum at 500 VDC and a dielectric strength of 900 VAC at sea level. Environmental testing includes resistance to humidity, vibration (30G), and shock (100G), with a load life of 1,000 hours at 0.5W.
The physical dimensions are a square 0.375" x 0.375" face (9.53mm x 9.53mm). It is available on tape and reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 500 kΩ.
The power rating is 0.5W at 85°C.
The tolerance is ±10%.
The temperature coefficient is ±100ppm/°C.
It has 1 turn.
It offers top finger adjustment.
The face dimensions are 9.53mm x 9.53mm.
