| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque |

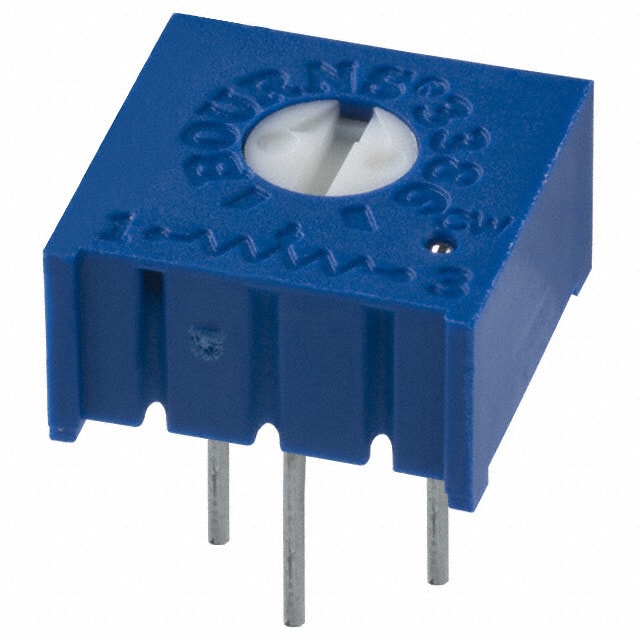

The Bourns 3386P-1-203LF is a 3/8" square trimming potentiometer from the Trimpot® series. It offers a resistance of 20 kΩ with a tolerance of ±10% and a power rating of 0.5W at 85°C.
This cermet potentiometer is designed for industrial applications and features a sealed construction. It has a single turn adjustment with a top adjustment type and PC pin termination. The device operates within a temperature range of -55°C to +125°C and has a temperature coefficient of ±100ppm/°C.
Physical characteristics include a square package measuring 0.375" x 0.375" and a mechanical adjustment angle of 280° nominal. The mounting type is through hole, making it suitable for various circuit board designs. The standard packaging is 50 pieces per tube.
Environmental testing includes resistance to humidity, vibration, and shock, with load life and rotational life specifications provided. The unit is also RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3386P-1-203LF trimmer potentiometer has a resistance value of 20 kΩ.
The power rating for the 3386P-1-203LF trimmer potentiometer is 0.5W at 85°C.
The tolerance for the Bourns 3386P-1-203LF trimmer potentiometer is ±10%.
The temperature coefficient is ±100ppm/°C.
This trimmer potentiometer is designed for through-hole mounting.
The standard packaging for the 3386P-1-203LF is 50 pieces per tube.
