| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

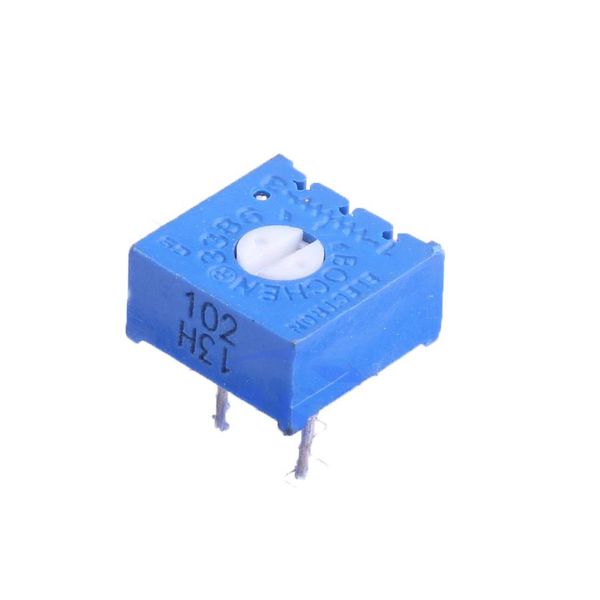

The Bourns 3386P-1-102 is a 3/8" square trimming potentiometer from the 3386 series. This single-turn cermet potentiometer offers a resistance value of 1 kΩ with a standard tolerance of ±10%. It is designed for through-hole mounting and features PC pin terminals.
With a power rating of 0.5W at 85°C, the 3386P-1-102 is suitable for various industrial applications. The operating temperature range is -55°C to +125°C, and it has a temperature coefficient of ±100 PPM/°C. The adjustment angle is 280° nominal, with a mechanical angle of 310° nominal.
Environmental testing includes humidity resistance per MIL-STD-202 Method 103, vibration resistance up to 30G, and shock resistance up to 100G. Load life testing is rated for 1,000 hours at 0.5W and 85°C, with rotational life specified for 200 cycles.
The potentiometer has a size of 0.375" x 0.375" face (9.53mm x 9.53mm) and is typically supplied in tubes of 50 pieces. It is RoHS compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 kΩ.
The tolerance is ±10%.
The power rating is 0.5W at 85°C.
The operating temperature range is -55°C to +125°C.
The mounting type is Through Hole.
The resistive material is Cermet.
A standard tube package contains 50 pieces.
