| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

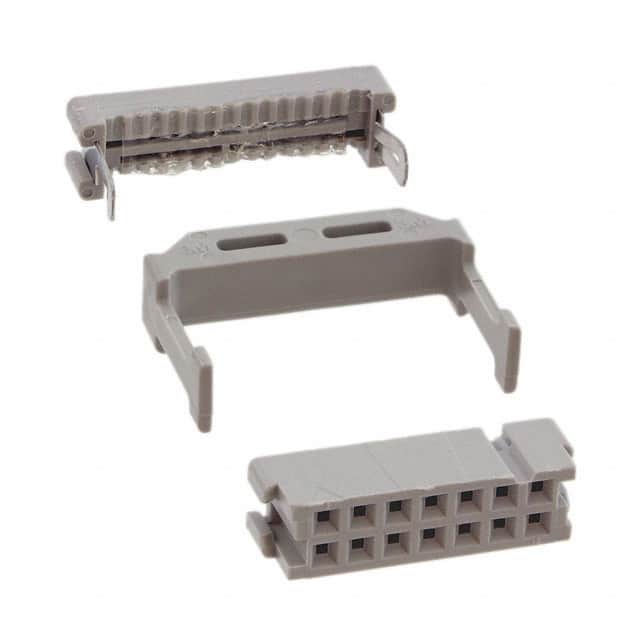

This is a 14-position IDC (Insulation Displacement Connector) receptacle from 3M, part of the 3000 series Wiremount Socket family. It accepts 26-28 AWG ribbon cable and terminates via IDC for reliable mass termination.
The connector features a 2.54mm (0.100") pitch with 2 rows and 2.54mm row spacing. Contacts are female sockets with a 30.0µin gold finish, ensuring low resistance and corrosion resistance. The connector body is gray and includes feed-through and strain relief features.
Mounting is free-hanging (in-line), suitable for cable-to-board or cable-to-cable connections in applications requiring compact, reliable interconnects. The IDC termination reduces assembly time compared to discrete crimping.
The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). Note that the manufacturer has reported extended lead times (132 days) for the 3000 series as of June 2021 due to supply constraints.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.51 | $4.51 |
| 10+ | $3.83 | $3.83 |
| 25+ | $3.59 | $3.59 |
| 50+ | $3.42 | $3.42 |
| 100+ | $3.26 | $3.26 |
| 300+ | $3.02 | $3.02 |
| 600+ | $2.87 | $2.87 |
| 1,200+ | $2.73 | $2.73 |
| 2,700+ | $2.58 | $2.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
2.54mm (0.100").
Free hanging (in-line).
26-28 AWG ribbon cable.
Gold, 30.0µin (0.76µm) thickness.
Yes, it includes feed through and strain relief features.
