| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

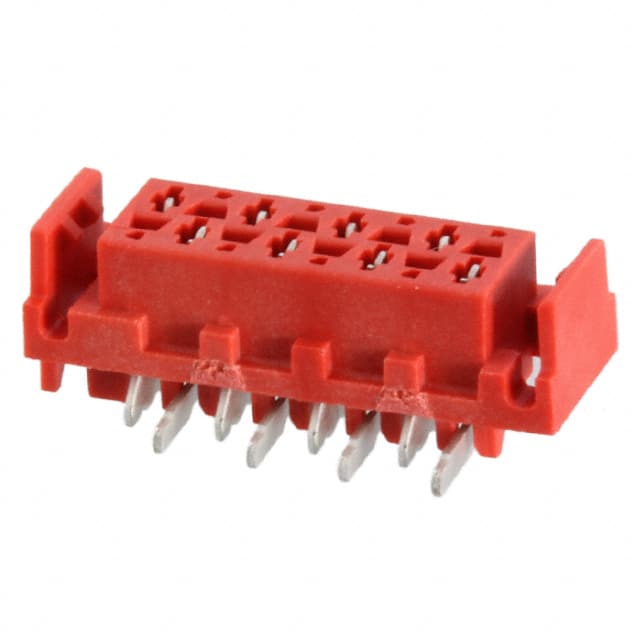

The TE Connectivity 338069-8 is an 8 position, 2 row receptacle from the Micro-MaTch connector family. It features a 2.54mm pitch and row spacing, surface mount termination, and a friction lock fastening type for secure mating. The insulation is red UL94 V-0 rated material with a height of 5.30mm.
This receptacle accepts forked contacts and is rated for 100 VDC. It is designed for board-to-board or cable applications and operates over a temperature range of -40°C to 105°C. The contact finish is tin.
The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.53 | $2.53 |
| 10+ | $2.15 | $2.15 |
| 100+ | $1.83 | $1.83 |
| 900+ | $1.56 | $1.56 |
| 1,800+ | $1.49 | $1.49 |
| 2,700+ | $1.45 | $1.45 |
| 4,500+ | $1.40 | $1.40 |
| 6,300+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 338069-8 has 8 positions in 2 rows.
The pitch is 2.54 mm (0.100 inches).
The voltage rating is 100 VDC.
Surface mount (SMT) with solder termination.
-40°C to 105°C.
UL94 V-0.
