| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,500 pcs
|
17500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Loaded Positions | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

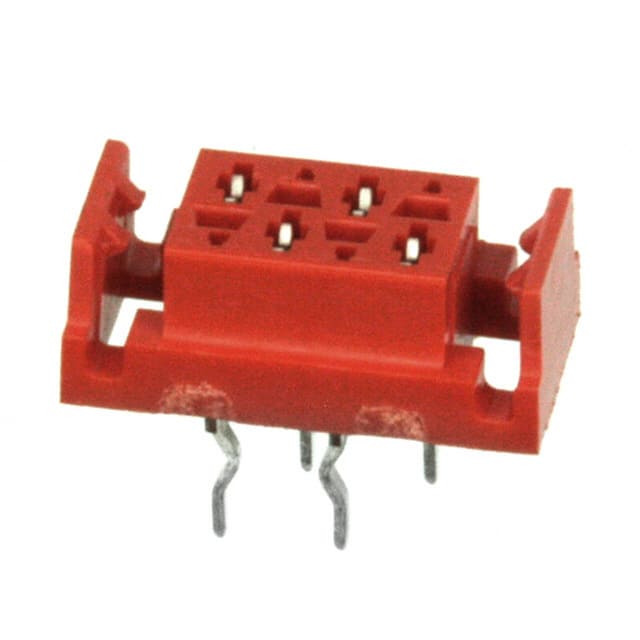

The TE Connectivity 338068-4 is a 4 position, 2 row rectangular receptacle connector designed for board-to-board or cable applications. It features a 2.54mm pitch and row spacing, with through hole mounting and kinked pin solder termination. The connector uses forked tin plated contacts and a friction lock fastening type for secure mating. The red insulation is rated UL94 V-0 for flammability. Operating temperature range is -40°C to 105°C with a voltage rating of 100 VDC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
| 10+ | $0.42 | $0.42 |
| 100+ | $0.36 | $0.36 |
| 500+ | $0.32 | $0.32 |
| 1,000+ | $0.30 | $0.30 |
| 2,500+ | $0.28 | $0.28 |
| 5,000+ | $0.27 | $0.27 |
| 7,500+ | $0.26 | $0.26 |
| 12,500+ | $0.25 | $0.25 |
| 17,500+ | $0.25 | $0.25 |
| 25,000+ | $0.24 | $0.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
It has 4 positions, all loaded, in 2 rows.
The voltage rating is 100 VDC.
It uses through hole mounting with kinked pin solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin.
The insulation material has a UL94 V-0 flammability rating.
