Mfr Part #:

338-030-541-203

Name: 338-030-541-203
Brand: Edac
SKU: 338-030-541-203

Mfr Name: Edac

Description:

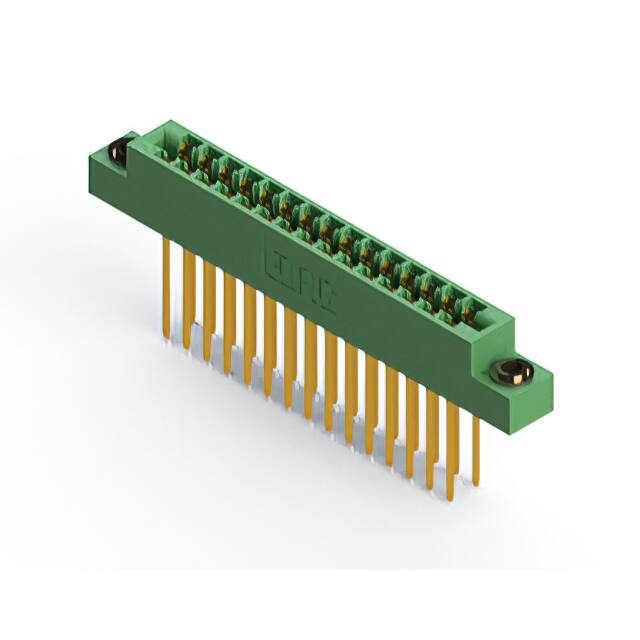

CONN EDGE DUAL FMALE 30POS 0.156

Stock on Request

338-030-541-203 Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 30POS 0.156

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

317-030-542-803

Edac

CONN EDGE DUAL FMALE 30POS 0.156

336-030-541-803

Edac

336 SERIES (.156" (3.96MM) CONTA

317-030-540-803

Edac

CONN EDGE DUAL FMALE 30POS 0.156

Category	Edgeboard Connectors
Manufacturer Name	Edac
Card Thickness	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Gender	Female
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Dual
Termination	Wire Wrap
