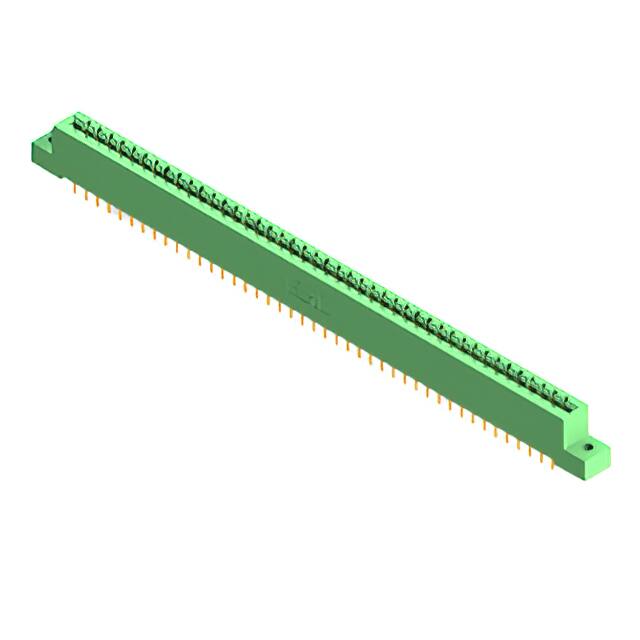

The EDAC Inc. 337-086-541-202 is a dual row female edgeboard connector from the 337 series. It features 86 total contacts arranged in two rows with a 3.96mm (0.156") contact pitch and 5.08mm (0.200") row spacing. The connector accepts a non-specified dual edge card with a thickness range of 1.37mm to 1.78mm (0.054" to 0.070").
Termination is via wire wrap with a tail length of 19.05mm (0.750"). Contacts are made of copper alloy with a gold finish (10.0µin / 0.25µm) on the mating area and tin plating on tails with nickel underplating. The insulator is green thermoplastic polyester rated UL 94V-0.
Electrical ratings include a current rating of 3 A per contact, contact resistance of 10 mΩ maximum, dielectric withstanding voltage of 1800 V AC rms, and insulation resistance of 5000 MΩ minimum. The connector operates over a temperature range of -40°C to +105°C.
Mounting is through hole with a flush mount flange feature (top opening, unthreaded, 0.128" / 3.25mm diameter). The connector is RoHS3 compliant and packaged in a box.
| Qty | Low | High |
|---|---|---|
| 25+ | $14.36 | $14.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 86 total positions arranged in two rows (43 per row).
The contact pitch is 3.96mm (0.156") with a row spacing of 5.08mm (0.200").
The current rating is 3 A per contact.
The connector uses wire wrap termination with a tail length of 19.05mm (0.750").
The operating temperature range is -40°C to +105°C.
Yes, it is RoHS3 compliant.
