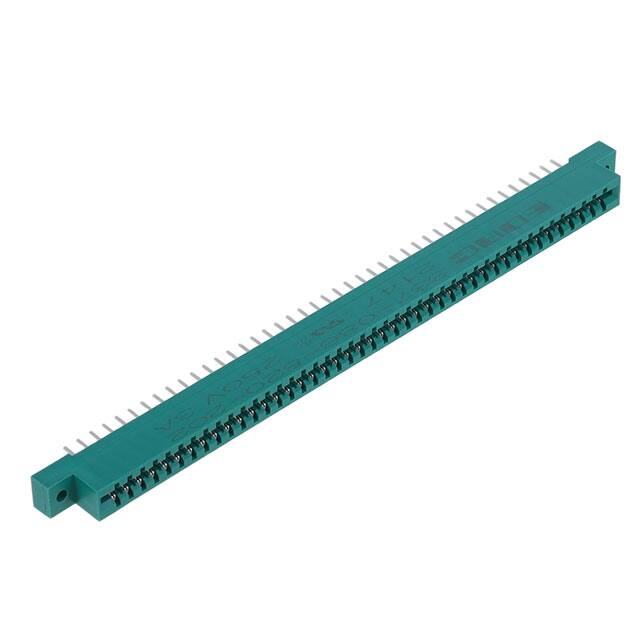

The 337-086-520-202 is a 86-position dual female card edge connector from the Edac 337 series. It features a 0.156" (3.96mm) contact pitch with a dual row configuration and dual readout, providing reliable connection for edge card applications. The connector uses cantilever contacts made of copper alloy with a gold finish of 10.0µin (0.25µm) for excellent conductivity and corrosion resistance.
This through-hole connector is terminated by solder, making it suitable for permanent PCB mounting. The flush mount flange with unthreaded 0.128" diameter holes allows for secure panel attachment. The operating temperature range spans -40°C to 105°C, accommodating a wide variety of environments. The connector is designed for non-specified dual edge cards with a card thickness of 0.054" to 0.070" (1.37mm to 1.78mm).
Typical applications include power supplies, storage devices, and navigational equipment, as indicated in the datasheet. The 337 series offers multiple contact and mounting options, and this part includes polarization for correct alignment. The green insulator and gold contacts are standard for this series.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.39 | $18.39 |
| 10+ | $15.63 | $15.63 |
| 25+ | $14.65 | $14.65 |
| 50+ | $13.95 | $13.95 |
| 100+ | $13.28 | $13.28 |
| 250+ | $12.45 | $12.45 |
| 500+ | $11.86 | $11.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 86 positions in a dual row arrangement.
The contact pitch is 0.156" (3.96mm).
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is gold with a thickness of 10.0µin (0.25µm).
The connector has 2 rows of contacts.
The connector supports non-specified dual edge cards with thickness 0.054" to 0.070" (1.37mm to 1.78mm).
