| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Failure Rate | |
| Mounting Type | |
| Number of Turns | |
| Power Rating | |
| Resistance | |
| SVHC Present | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

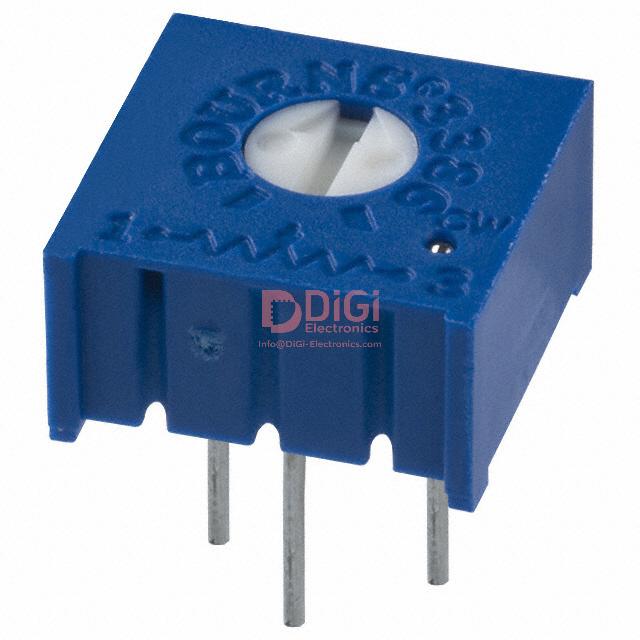

The Bourns 3366P-1-500 is a cermet trimmer potentiometer from the Trimpot® 3386 series. It offers a resistance value of 500 kOhms with a tolerance of ±10% and a power rating of 0.5W.
This potentiometer features a top adjustment type and PC pin termination, making it suitable for through-hole mounting. The resistive material is cermet, known for its stability and reliability. The series is sealed, providing protection against environmental factors.
Key electrical specifications include a temperature coefficient of ±100ppm/°C and a single turn adjustment. The dimensions of the component are a square face of 0.375" x 0.375" (9.53mm x 9.53mm).
This part is suitable for applications requiring precise resistance adjustments in a compact form factor. Its through-hole mounting allows for secure placement on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
500 kOhms.
±10%.
0.5W (1/2W).
±100ppm/°C.
Tube.
Top adjustment.
Cermet.
