| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Material | |
| Conductor Pitch | |
| Conductor Plating | |
| Conductor Strand | |
| Features | |
| Flammability Rating | |
| Insulation Resistance | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Lead Spacing | |
| Length | |
| Number of Conductors | |
| Operating Temperature | |
| Pitch | |
| Ratings | |
| Ribbon Thickness | |
| Ribbon Width | |
| SVHC Present | |
| Shielding | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| capacitance (Typical @ Balanced) | |
| capacitance (Typical @ Unbalanced) | |
| characteristic_impedance (Typical @ Balanced) | |
| characteristic_impedance (Typical @ Unbalanced) | |
| inductance (Typical @ Balanced) | |
| inductance (Typical @ Unbalanced) | |
| propagation_delay (Typical @ Balanced) | |
| propagation_delay (Typical @ Unbalanced) | |
| velocity_of_propagation (Typical @ Balanced) | |
| velocity_of_propagation (Typical @ Unbalanced) |

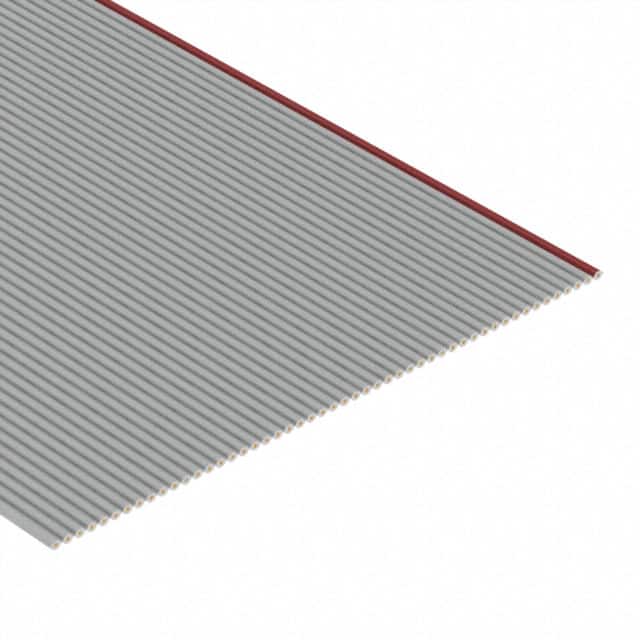

The 3M 3365/50 is a 50 conductor flat ribbon cable with 28 AWG stranded tinned copper conductors on 0.05 inch (1.27 mm) pitch. The cable has a gray PVC jacket, is unshielded, and is rated for 300V with an operating temperature range of -20°C to +105°C. It features a zippable design for easy branching or discrete termination and is compatible with mass-termination IDC connectors.
Electrical characteristics include a characteristic impedance of 102 ohms unbalanced and 172 ohms balanced, capacitance of 14.47 pF/ft unbalanced and 8.14 pF/ft balanced, and propagation delay of 1.47 ns/ft unbalanced and 1.4 ns/ft balanced. The cable has a velocity of propagation of 69% unbalanced and 73% balanced.
The cable is UL Style 2651 rated with flammability ratings of VW-1 (USA) and FT1 (Canada). It is available in a 500 ft length on a spool. The 3365 series is designed for internal wiring of electronic equipment and cable assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.89 | $2.89 |
| 5+ | $2.31 | $2.31 |
| 10+ | $2.10 | $2.10 |
| 25+ | $1.84 | $1.84 |
| 50+ | $1.67 | $1.67 |
| 100+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 V
-20°C to +105°C
Length: 500 ft (152.40m), Pitch: 0.05" (1.27mm)
RoHS3 compliant according to available data (unverified confidence)
28 AWG stranded (7 strands of 36 AWG each)
VW-1 (USA) and FT1 (Canada)
Unshielded
