| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Material | |
| Conductor Strand | |
| Features | |
| Flammability Rating | |
| Insulation Resistance | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Lead Spacing | |
| Length | |
| Number of Conductors | |
| Operating Temperature | |
| Pitch | |
| Ratings | |
| Ribbon Thickness | |
| Ribbon Width | |
| Shielding | |
| Voltage | |
| Wire Gauge | |
| capacitance (Typical @ Balanced) | |
| capacitance (Typical @ Unbalanced) | |
| characteristic_impedance (Typical @ Balanced) | |
| characteristic_impedance (Typical @ Unbalanced) | |
| inductance (Typical @ Balanced) | |
| inductance (Typical @ Unbalanced) | |
| propagation_delay (Typical @ Balanced) | |
| propagation_delay (Typical @ Unbalanced) | |
| velocity_of_propagation (Typical @ Balanced) | |
| velocity_of_propagation (Typical @ Unbalanced) |

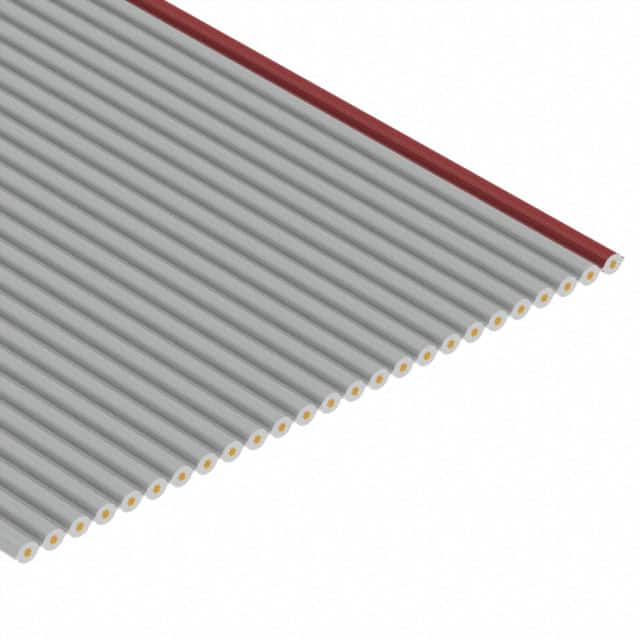

This 3M 3365/25 100 is a 25-conductor flat ribbon cable from the 3365 series. It features 28 AWG stranded tinned copper conductors on 0.050" pitch, allowing mass termination to IDC connectors. The cable is unshielded with a gray PVC jacket and has a 300V voltage rating. It is UL style 2651 and VW-1/FT1 flammability rated. The cable is zippable for branching or discrete termination. Electrical characteristics include a characteristic impedance of 102 Ω unbalanced and 172 Ω balanced, with capacitance of 14.47 pF/ft unbalanced. The operating temperature range is -20°C to 105°C. Available in 100 ft rolls, also available in 300 ft rolls. Suitable for internal wiring and data transmission applications where mass termination is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.66 | $1.66 |
| 5+ | $1.33 | $1.33 |
| 10+ | $1.21 | $1.21 |
| 25+ | $1.06 | $1.06 |
| 50+ | $0.96 | $0.96 |
| 100+ | $0.87 | $0.87 |
| 200+ | $0.82 | $0.82 |
| 300+ | $0.78 | $0.78 |
| 500+ | $0.72 | $0.72 |
| 700+ | $0.69 | $0.69 |
| 1,000+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300V.
-20°C to 105°C.
Available in 100 ft rolls, and also 300 ft rolls.
25 conductors.
28 AWG, stranded with 7 strands of 36 AWG.
VW-1 (USA) and FT1 (Canada).
No, it is unshielded.
