| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Strand | |
| Features | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Lead Spacing | |
| Length | |
| Number of Conductors | |
| Operating Temperature | |
| Pitch | |
| Ratings | |
| Ribbon Thickness | |
| Ribbon Width | |
| Shielding | |
| Voltage | |
| Wire Gauge |

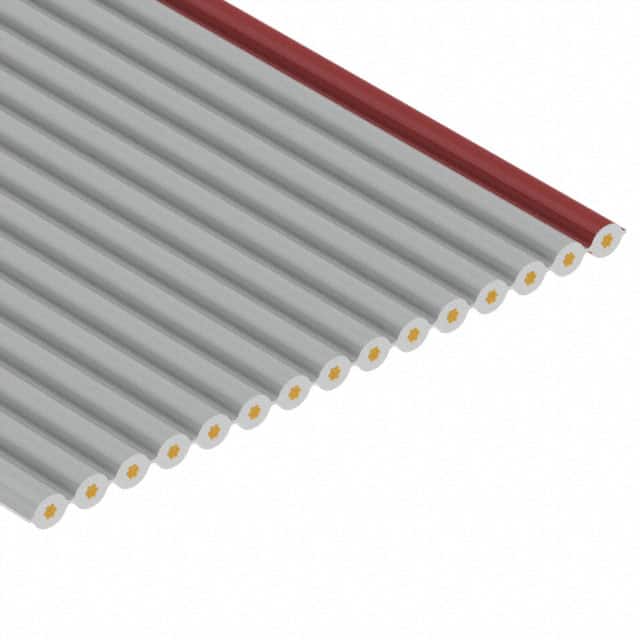

The 3365/16SF is a 16-conductor flat ribbon cable from 3M, part of the 3365 series. It features 28 AWG stranded tinned copper conductors (7 strands of 36 AWG) on 0.050 inch centers, allowing mass termination to a broad line of IDC connectors. The cable has a gray PVC jacket and is unshielded.
Electrically, the cable is rated for 300V in the USA and Canada, and <50V in the EU. The operating temperature range is -20°C to +105°C. It meets flammability ratings of VW-1 (USA) and FT1 (Canada). The characteristic impedance is 102 Ω unbalanced and 172 Ω balanced. Capacitance is 14.47 pF/ft (unbalanced). Insulation resistance exceeds 1 × 10^10 Ω/10 ft.
This cable is designed for internal wiring of electronic equipment and can be zippable for branching or discrete termination. It is UL recognized under file E42769, style 2651. The cable is available in a 500 ft spool.
| Qty | Low | High |
|---|---|---|
| 500+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USA: 300V, Canada: 300V, EU: <50V.
-20°C to +105°C.
16 conductors.
0.050 inch (1.27 mm).
28 AWG stranded (7 strands of 36 AWG).
500 feet (152.40 m).
No, it is unshielded.
