| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
610 pcs
|
610 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Material | |
| Conductor Strand | |
| Features | |
| Flammability Rating | |
| Insulation Resistance | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Jacket Material | |
| Lead Spacing | |
| Length | |
| Number of Conductors | |
| Operating Temperature | |
| Pitch | |
| Ratings | |
| Ribbon Thickness | |
| Ribbon Width | |
| Shielding | |
| Temperature Rating | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| capacitance (Nominal @ Between conductors within A pair) | |
| capacitance (Nominal @ Ground-signal-ground) | |
| characteristic_impedance (Typical @ Between conductors within A pair) | |
| characteristic_impedance (Typical @ Ground-signal-ground configuration) | |
| inductance (Nominal @ Between conductors within A pair) | |
| inductance (Nominal @ Ground-signal-ground) | |
| propagation_delay (Nominal @ Between conductors within A pair) | |
| propagation_delay (Nominal @ Ground-signal-ground) | |
| velocity_of_propagation (Typical) |

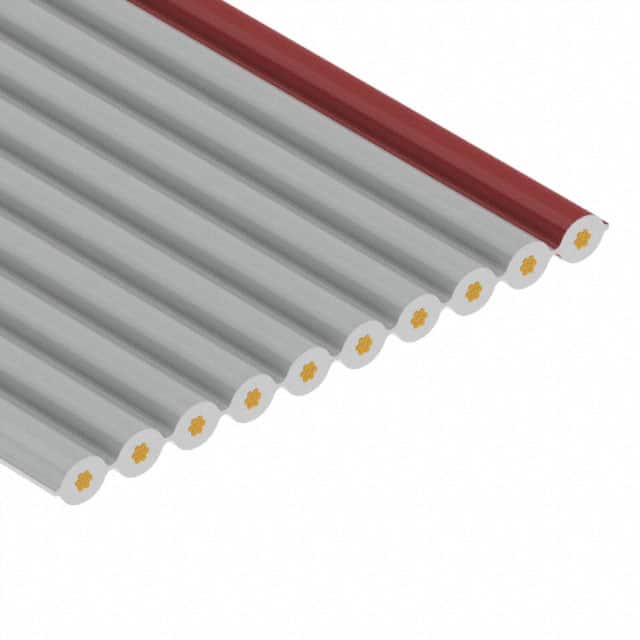

The 3M 3365/10SF is a round conductor flat ribbon cable designed for mass termination to IDC connectors. It features 10 conductors of 28 AWG stranded tinned copper wire on 0.050 inch (1.27 mm) centers. The cable is unshielded with a gray PVC jacket and has a ribbon width of 0.500 inches (12.70 mm) and thickness of 0.035 inches (0.89 mm).
Electrical characteristics include a voltage rating of 300 V, characteristic impedance of 102 Ω unbalanced and 172 Ω balanced, capacitance of 47.5 pF/m unbalanced and 26.7 pF/m balanced, and propagation delay of 4.86 ns/m unbalanced. The cable operates from -20°C to +105°C and has a flammability rating of VW-1 (USA) and FT1 (Canada).
The zippable feature allows for branching or discrete termination of individual conductors. This cable is UL Style 2651 listed and RoHS compliant. It is supplied in a 500 ft (152.4 m) length.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 5+ | $0.76 | $0.76 |
| 10+ | $0.69 | $0.69 |
| 25+ | $0.61 | $0.61 |
| 50+ | $0.55 | $0.55 |
| 100+ | $0.50 | $0.50 |
| 500+ | $0.40 | $0.40 |
| 1,000+ | $0.36 | $0.36 |
| 1,500+ | $0.34 | $0.34 |
| 2,500+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 V.
-20°C to +105°C.
RoHS3 Compliant (unverified).
10 conductors.
28 AWG stranded.
0.050 inch (1.27 mm).
UL Style 2651.
