| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
556 pcs
|
556 pcs | On Request | 1 | On Request | On Request | 0050 | On Request | On Request | |
|
510 pcs
|
510 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque |

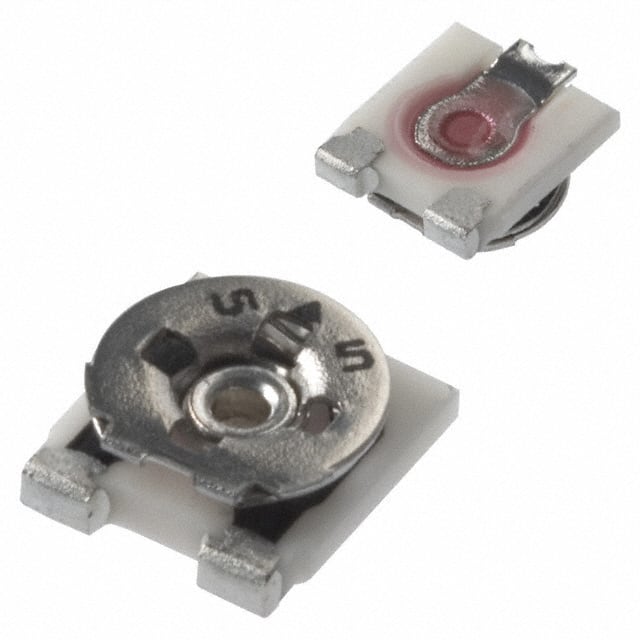

The Bourns 3364W-1-102E is a 1 kΩ cermet trimmer potentiometer from the Trimpot® 3364 series. It offers a standard resistance tolerance of ±25% and a power rating of 0.2W at 70°C. This open-frame, single-turn potentiometer has a top adjustment type and a J Lead termination style, making it suitable for surface mount assembly.
Key electrical characteristics include an adjustment angle of 260°±20°, infinite resolution, and a temperature coefficient of ±250ppm/°C. The operating temperature range is -40°C to +125°C. The physical dimensions are rectangular, measuring 0.177" x 0.150" (4.50mm x 3.80mm).
This component is supplied in tape and reel packaging, with 1000 pieces per 7" reel, and is recommended for reflow solder processing. The Bourns 3364W-1-102E is designed for industrial applications requiring precise resistance adjustments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3364W-1-102E has a resistance of 1 kΩ.
The tolerance for the 3364W-1-102E is ±25%.
The power rating is 0.2W at 70°C.
The operating temperature range is -40°C to +125°C.
It is supplied in tape and reel packaging with 1000 pieces per 7" reel.
