| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,421 pcs
|
1421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ChinaRoHS | |
| Color | |
| ELV | |
| For Use With | |
| Gender | |
| HalogenFree | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| PackagingQuantity | |
| Style | |
| Terminal Size | |
| Terminal Type | |
| UL Flammability Rating |

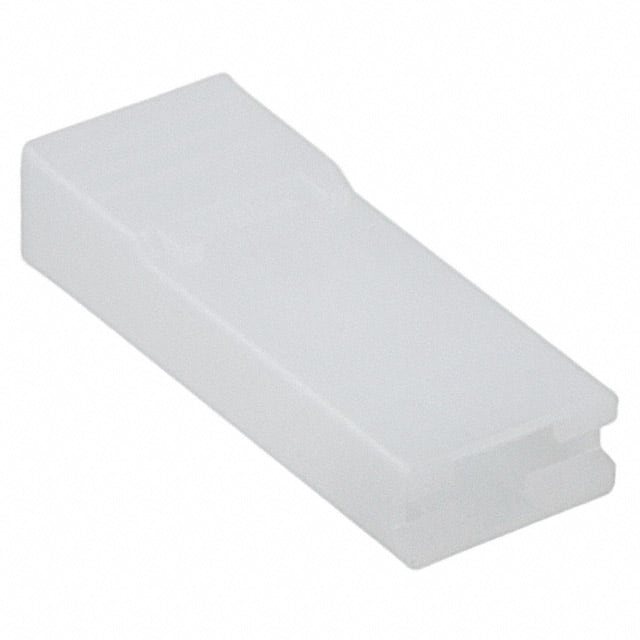

The TE Connectivity 336369-1 is a single-position receptacle housing from the FASTON 250 series, designed for use with 0.250" (6.35mm) quick connect and disconnect terminals. The housing is made of natural nylon and is rated UL 94V-2 for flammability.
This free hanging (in-line) housing accommodates female receptacle terminals with straight orientation. It has a product length of 24.4 mm and is rated for operating temperatures from -40°C to 105°C. The housing is non-sealable and does not include contact mating retention.
The part is RoHS, ELV, and China RoHS compliant, and does not contain REACH SVHC. It is packaged in quantities of 7500 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
| 10+ | $0.17 | $0.17 |
| 25+ | $0.16 | $0.16 |
| 50+ | $0.15 | $0.15 |
| 100+ | $0.15 | $0.15 |
| 250+ | $0.14 | $0.14 |
| 500+ | $0.13 | $0.13 |
| 1,000+ | $0.12 | $0.12 |
| 2,500+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 1 position.
Free hanging (in-line) cable mount.
0.250" (6.35mm) quick connect/disconnect terminals.
-40°C to 105°C.
Yes, it is RoHS compliant.
UL 94V-2.
