| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

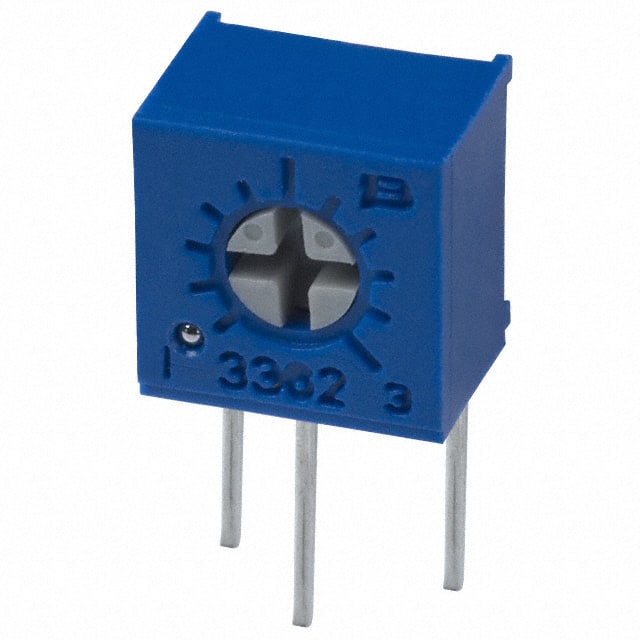

The Bourns 3362X-1-103LF is a 1/4" square cermet trimming potentiometer designed for industrial applications. This single-turn unit offers a standard resistance of 10 kΩ with a ±10% tolerance and a power rating of 0.5W at 70°C. It features a side adjustment and PC pin termination, making it suitable for through-hole mounting.
The potentiometer operates within a temperature range of -55°C to +125°C and has a temperature coefficient of ±100 PPM/°C. It is sealed to withstand harsh environments and immersion cleaning processes. The device meets MIL-STD-202 standards for humidity, vibration, and shock resistance, ensuring reliability in demanding conditions.
Key electrical characteristics include infinite resolution, a minimum insulation resistance of 1,000 MΩ at 500 VDC, and a dielectric strength of 900 VAC at sea level. The adjustment angle is 240° nominal. The 3362 series is available in tape and reel packaging, and this specific model is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kΩ.
The tolerance is ±10%.
The power rating is 0.5W at 70°C.
The temperature coefficient is ±100 PPM/°C.
It is a through-hole mounted component with PC pins.
The operating temperature range is -55°C to +125°C.
It features a side adjustment.
