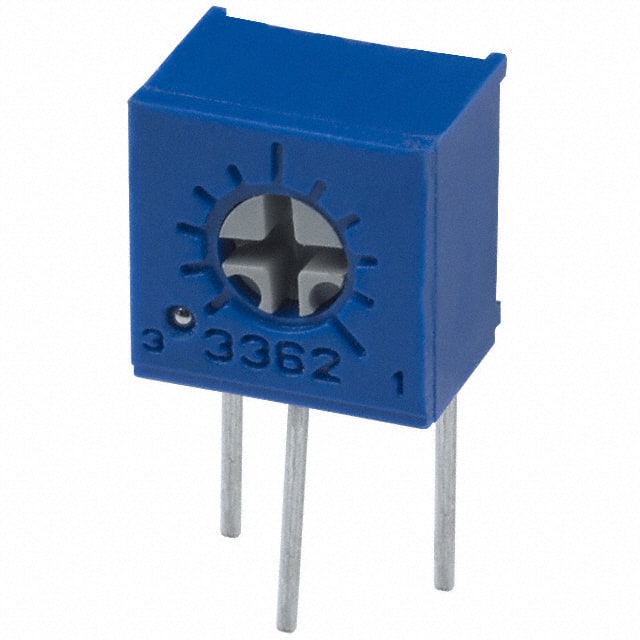

3362W-1-502LF The Bourns 3362W-1-502LF is a single-turn trimmer potentiometer with a 5 kΩ resistance and a 0.5W power rating. It features a Cermet resistive element and PC pin termination.
Mfr Part #:

3362W-1-502LF

Available from 2 distributors
Mfr Name: Bourns
Bourns
The Bourns 3362W-1-502LF is a single-turn trimmer potentiometer with a 5 kΩ resistance and a 0.5W power rating. It features a Cermet resistive element and PC pin termination.
✓ Total Stock: 413 pcs
$ Price Range: $0.05

3362W-1-502LF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
390 pcs
On Request
390 pcs On Request 1 On Request On Request 17+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3362W-1-502LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Insulation Resistance
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Storage Temperature
Tape & Reel
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

3362W-1-502LF Description

Short technical summary and product information.

The Bourns 3362W-1-502LF is a 1/4" square Trimpot® trimming potentiometer designed for industrial applications. This single-turn, sealed cermet potentiometer offers a resistance of 5 kΩ with a tolerance of ±10% and a power rating of 0.5W at 70°C.



Featuring a miniature package and side adjustment, this component is suitable for automatic machine adjustment interfaces. It is built to withstand harsh environments and immersion cleaning processes. The termination style is PC pins, and it is designed for through-hole mounting.



Environmental characteristics include a wide operating temperature range of -55°C to +125°C and a temperature coefficient of ±100 PPM/°C. The potentiometer has undergone rigorous testing for humidity, vibration, and shock resistance, ensuring reliability in demanding applications. It also boasts a rotational life of 200 cycles.



This model is RoHS compliant and available in tape and reel packaging.

3362W-1-502LF Quick Information

Product Type: Trimmer Potentiometer
Series: 3362
Canonical Name: Bourns 3362W Series Trimmer Potentiometer
Subcategory: Trimmer Potentiometer

3362W-1-502LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3362W-1-502LF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3362W-1-502LF Features

  • Single-turn cermet trimmer potentiometer.
  • 5 kΩ resistance with ±10% tolerance.
  • 0.5W power rating at 70°C.
  • Through-hole mounting with PC pins.
  • Sealed for harsh environments.

3362W-1-502LF Applications

  • Ideal for automated machine adjustments.
  • Suitable for immersion cleaning processes.
  • Used in industrial control systems.
  • Reliable in high-vibration environments.

3362W-1-502LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3362W-1-502LF trimmer potentiometer?

The resistance of the Bourns 3362W-1-502LF trimmer potentiometer is 5 kΩ.

What is the power rating of the 3362W-1-502LF trimmer potentiometer?

The power rating is 0.5W at 70°C.

What is the temperature coefficient for this Bourns trimmer potentiometer?

The temperature coefficient is ±100 PPM/°C.

How many turns does the 3362W-1-502LF potentiometer have?

This potentiometer has 1 turn.

What type of adjustment does the 3362W-1-502LF offer?

It features a side adjustment.

What are the dimensions of the 3362W-1-502LF trimmer potentiometer?

The size is Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm).

Is the Bourns 3362W-1-502LF RoHS compliant?

Yes, it is RoHS3 Compliant.
