| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

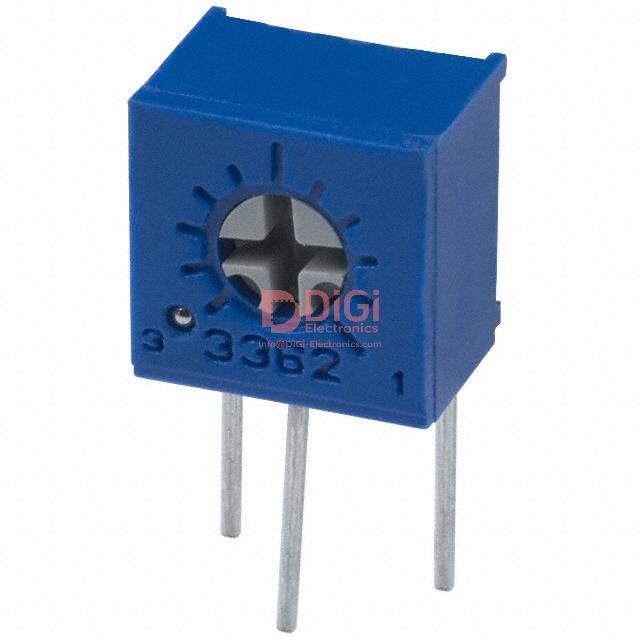

The Bourns 3362W-1-502 is a single-turn, cermet trimmer potentiometer from the 3362 series. It offers a resistance value of 5 kΩ with a tolerance of ±10% and a power rating of 0.5W at 70°C. This miniature potentiometer is sealed and designed for industrial applications, withstanding harsh environments and immersion cleaning processes.
Featuring a side adjustment and PC pin termination style, the 3362W-1-502 is suitable for through-hole mounting. Its cermet resistive element ensures reliable performance across a wide temperature range of -55°C to +125°C, with a temperature coefficient of ±100 PPM/°C. The adjustment angle is 240° nominal.
Environmental testing includes humidity resistance per MIL-STD-202 Method 103, vibration up to 30G, and shock resistance up to 100G. Load life testing is rated for 1,000 hours at 0.5W and 70°C, with rotational life specified at 200 cycles.
This component is RoHS3 compliant and has an MSL of 1. Its dimensions are rectangular, measuring 0.275" x 0.260" face (6.99mm x 6.60mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3362W-1-502 trimmer potentiometer has a resistance of 5 kΩ.
The power rating for the 3362W-1-502 is 0.5W at 70°C.
The tolerance of the 3362W-1-502 trimmer potentiometer is ±10%.
The temperature coefficient of the 3362W-1-502 is ±100 PPM/°C.
The 3362W-1-502 has 1 turn.
The 3362W-1-502 offers side adjustment.
The operating temperature range for the 3362W-1-502 is -55°C to +125°C.
