| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

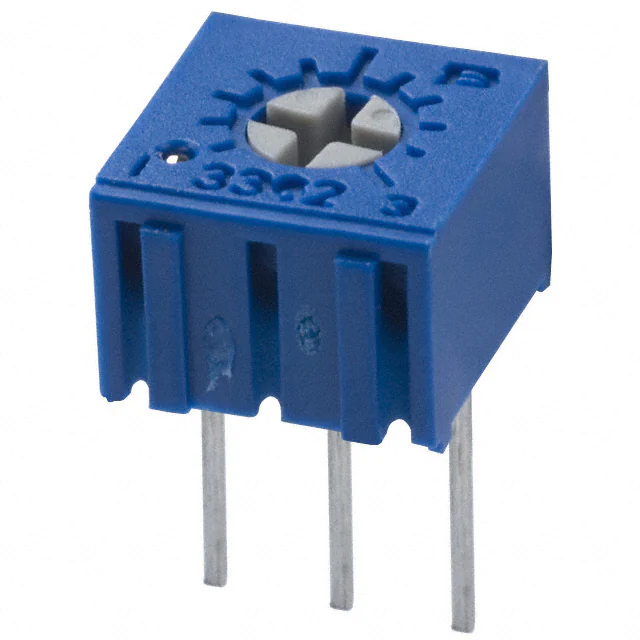

The Bourns 3362U-1-102LF is a single-turn, cermet trimmer potentiometer designed for industrial applications. It offers a resistance value of 1 kΩ with a tolerance of ±10% and a power rating of 0.5W at 70°C.
This miniature potentiometer features a sealed construction, making it suitable for harsh environments and immersion cleaning processes. The top adjustment mechanism and PC pin termination style facilitate easy integration into circuit boards.
Key electrical characteristics include a temperature coefficient of ±100ppm/°C and an insulation resistance of 1,000 megohms at 500 VDC. The adjustment angle is 240° nominal. The component operates within a temperature range of -55°C to +125°C.
Designed for automatic machine adjustment, the 3362U-1-102LF is available in tape and reel packaging. Its dimensions are rectangular, measuring 0.275" x 0.260" (6.99mm x 6.60mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 kΩ.
The power rating is 0.5W at 70°C.
The tolerance is ±10%.
The temperature coefficient is ±100ppm/°C.
It features top adjustment.
The resistive material is Cermet.
The dimensions are rectangular, 0.275" x 0.260" Face (6.99mm x 6.60mm).
