| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,428 pcs
|
1428 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

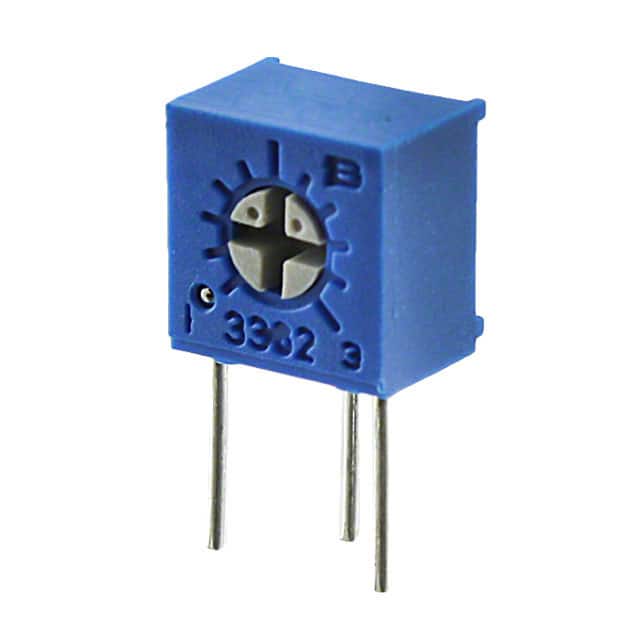

The Bourns 3362S-1-201LF is a 1/4 inch square trimming potentiometer from the 3362 series. This single-turn, cermet potentiometer offers a resistance value of 200 Ohms with a standard tolerance of ±10%. It is rated for 0.5W power at 70°C and features a temperature coefficient of ±100ppm/°C.
Designed for industrial applications, this trimmer has a side adjustment type and PC pin termination, making it suitable for through-hole mounting. The miniature package measures 0.275" x 0.260" (6.99mm x 6.60mm). It is sealed and can withstand harsh environments and immersion cleaning processes. Tape and reel packaging is also available.
Environmental characteristics include a wide operating temperature range of -55°C to +125°C. The potentiometer has undergone seal tests and humidity resistance tests according to MIL-STD-202 Method 103. It also meets vibration and shock resistance standards. Load life is rated for 1,000 hours at 0.5W @ 70°C, and rotational life is rated for 200 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 200 Ohms.
The tolerance is ±10%.
The power rating is 0.5W at 70°C.
The temperature coefficient is ±100ppm/°C.
It is a through-hole mounted component with PC pin termination.
The resistive material is Cermet.
The operating temperature range is -55°C to +125°C.
