| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,100 pcs
|
8100 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
2,149 pcs
|
2149 pcs | On Request | 1 | On Request | On Request | 1540+ | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

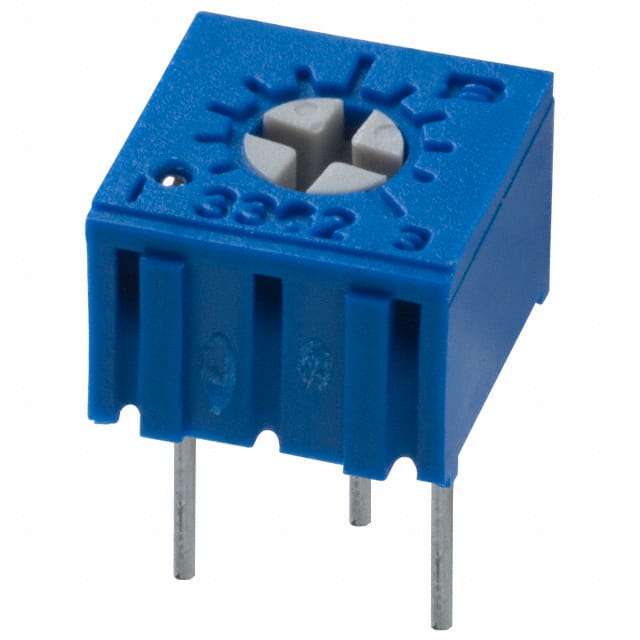

The Bourns 3362P-1-101LF is a single-turn, sealed trimmer potentiometer from the Trimpot 3362 series. It offers a standard resistance of 100 Ohms with a tolerance of ±10% and a power rating of 0.5W at 70°C.
This industrial-grade potentiometer utilizes a Cermet resistive element and provides infinite resolution. It is designed for through-hole mounting with PC pin termination. The adjustment type is top adjustment, and it features a miniature package suitable for automatic machine adjustment.
The device operates within a temperature range of -55°C to +125°C and has a temperature coefficient of ±100 PPM/°C. It is built to withstand harsh environments and immersion cleaning processes, making it suitable for various industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3362P-1-101LF has a resistance value of 100 Ohms.
The power rating is 0.5W at 70°C.
The resistance tolerance is ±10%.
The temperature coefficient is ±100 PPM/°C.
It uses through-hole mounting.
The resistive material is Cermet.
The face dimensions are rectangular, 0.275" x 0.260" (6.99mm x 6.60mm).
