| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

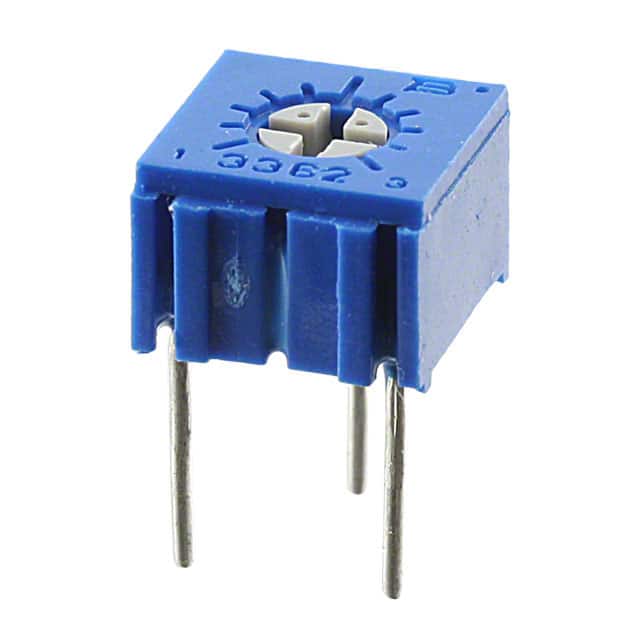

The Bourns 3362F-1-202LF is a single-turn, cermet trimming potentiometer designed for industrial applications. It features a miniature, sealed package suitable for harsh environments and immersion cleaning processes.
This potentiometer offers a standard resistance of 2 kΩ with a tolerance of ±10%. It has a power rating of 0.5W at 70°C and a temperature coefficient of ±100 PPM/°C. The adjustment angle is 240° nominal, and it utilizes PC pins for termination.
The unit is designed for through-hole mounting and has a rectangular package measuring 0.275" x 0.260" (6.99mm x 6.60mm). It is specified to withstand vibration up to 30G and shock up to 100G, with a rotational life of 200 cycles.
Environmental specifications include a temperature range of -55°C to +125°C and compliance with MIL-STD-202 Method 103 for humidity. The Bourns 3362F-1-202LF is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3362F-1-202LF trimmer potentiometer has a resistance of 2 kΩ.
The tolerance for the Bourns 3362F-1-202LF trimmer potentiometer is ±10%.
The power rating for the 3362F-1-202LF trimmer potentiometer is 0.5W at 70°C.
The temperature coefficient for the Bourns 3362F-1-202LF trimmer potentiometer is ±100 PPM/°C.
The 3362F-1-202LF trimmer potentiometer uses a rectangular package measuring 0.275" x 0.260" face (6.99mm x 6.60mm).
