| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
540 pcs
|
540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Absolute Minimum Resistance | |
| Adjustability Resistance | |
| Adjustability Voltage | |
| Adjustment Angle | |
| Adjustment Type | |
| Contact Resistance Variation | |
| Dielectric Strength (@ 80,000 Feet) | |
| Dielectric Strength (@ Sea Level) | |
| Humidity | |
| Insulation Resistance | |
| Lead Style | |
| Load Life | |
| Maximum Soldering Exposure | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistance Range | |
| Resistance Tolerance | |
| Resistive Material | |
| Resolution | |
| Rotational Life | |
| Seal Test | |
| Shock | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Vibration |

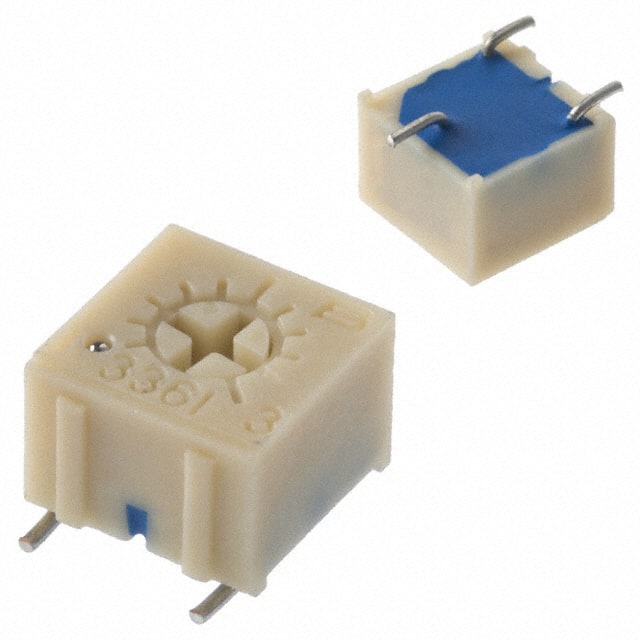

The Bourns 3361P-1-504GLF is a 1/4 inch square SMD trimpot designed for industrial and sealed applications. This single-turn cermet potentiometer offers a resistance range of 10 to 2 megohms with a standard tolerance of ±10%. It is rated for 0.5W power at 70°C and features a top adjustment type.
Designed for compatibility with surface mount manufacturing processes, it withstands harsh environments and immersion cleaning. The gull wing termination style ensures reliable mounting. The operating temperature range is -55°C to +125°C, with a temperature coefficient of ±100 PPM/°C.
Key electrical characteristics include infinite resolution, 1,000 megohms insulation resistance at 500 VDC, and a dielectric strength of 900 VAC at sea level. Environmental testing includes humidity, vibration (30G), and shock (100G) resistance, along with a load life of 1,000 hours and a rotational life of 200 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 3361P-1-504GLF trimmer potentiometer is 500 kΩ.
The tolerance for the 3361P-1-504GLF trimmer potentiometer is ±10%.
The power rating of the 3361P-1-504GLF trimmer potentiometer is 0.5W at 70°C.
The temperature coefficient of the 3361P-1-504GLF trimmer potentiometer is ±100 PPM/°C.
The 3361P-1-504GLF trimmer potentiometer is a 1/4 inch square SMD package with a rectangular face measuring 7.04mm x 6.70mm.
