Mfr Part #:

3357-6515-1C

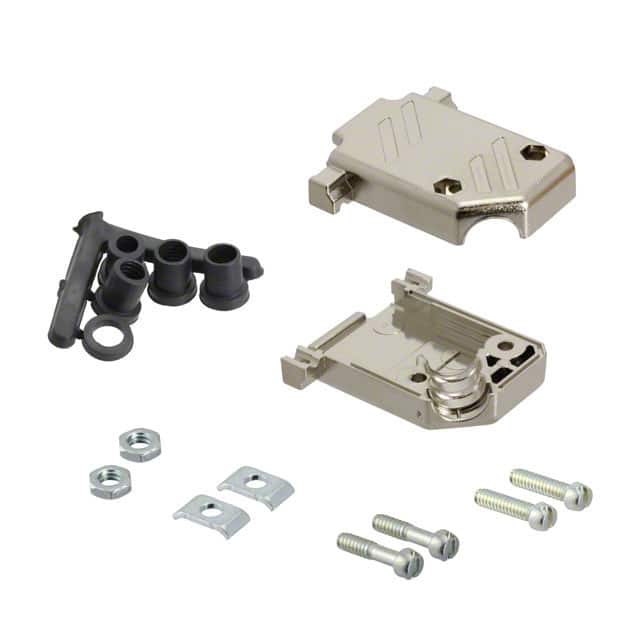

3M 3357-6515-1C is a 15-position shielded D-Sub backshell with 45° cable exit. It features ABS housing with nickel over copper plating, integrated strain relief, and UL94V-0 flammability rating.

✓ Total Stock: 100 pcs

$ Price Range: $3.54 - $6.16

3357-6515-1C Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

3357-6515-1C Description

Short technical summary and product information.

The 3M 3357-6515-1C is a metalized plastic D-Sub backshell designed for 15-position D-Sub connectors. It offers a 45° cable exit angle and is shielded to provide EMI/ESD protection.

Key specifications include shell size A, orientation angled, and a cable diameter range of 5.84 mm to 11.43 mm. The ABS housing is plated with nickel over copper, and the compression insert has a durometer of 75 ± 5 Shore. Operating temperature range is 0°C to +75°C, and the housing material has a UL 94V-0 flammability rating.

This two-piece backshell includes assembly hardware, strain relief, and mating screws 4-40. It is designed for use with round cable and is commonly applied in computing, industrial, and internal or external wiring systems.

3357-6515-1C Quick Information

Product Type: D-Sub Backshell

Series: 3357

Canonical Name: 3M 3357 Series 15-Position Two Piece D-Sub Backshell, 45° Cable Exit, Shielded, ABS, Silver

Subcategory: Two Piece Backshell

3357-6515-1C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

Lead Free: Yes

3357-6515-1C Estimated Pricing

Qty	Low	High
1+	$6.16	$6.16
10+	$5.23	$5.23
25+	$4.91	$4.91
50+	$4.67	$4.67
100+	$4.45	$4.45
300+	$4.12	$4.12
500+	$3.97	$3.97
1,000+	$3.78	$3.78
2,500+	$3.54	$3.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

3357-6515-1C Features

15-position shielded D-Sub backshell.
45° cable exit for angled routing.
ABS housing with nickel over copper plating.
Includes strain relief and assembly hardware.
UL94V-0 flammability rated housing.

3357-6515-1C Applications

Used in computing and industrial equipment.
Provides EMI/ESD protection for D-Sub connectors.
Suitable for round ribbon cable termination.
Ideal for internal and external wiring.

3357-6515-1C FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this backshell support?

This backshell supports 15 positions (for 15-position D-Sub connectors).

What is the cable exit angle?

The cable exit angle is 45°.

Is the backshell shielded?

Yes, it is shielded for EMI/ESD protection.

What is the housing material?

The housing is made of ABS (Acrylonitrile Butadiene Styrene) with nickel over copper plating.

What is the operating temperature range?

The operating temperature range is 0°C to +75°C.

What is the flammability rating?

The housing material has a UL 94V-0 flammability rating.

What cable diameter does it accommodate?

It accommodates round cable diameters from 5.84 mm to 11.43 mm.

Category	D-Sub, D-Shaped Connector Backshells, Hoods
Manufacturer Name	3M Electronic Solutions
Accessory Type	Two Piece Backshell
Cable Exit	45°
Cable Type	Round
Color	Silver
Features	Mating Screws 4-40
Halogen Free	No
Hardware	Assembly Hardware, Strain Relief
Housing Material	ABS
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	15
Operating Temperature Range	0°C to +75°C
Orientation	Angled
Plating	Nickel over Copper
SVHC Present	Not Present
Shielding	Shielded
