| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cable Diameter Range | |
| Cable Exit | |
| Cable Type | |
| Color | |
| Features | |
| Flammability Rating | |
| Hardware | |
| Hardware Detail | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Plating | |
| Shielding |

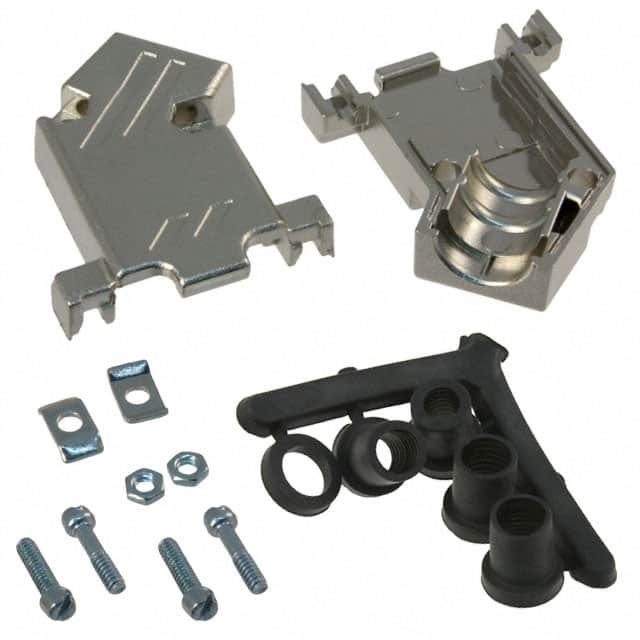

The 3M 3357-6509-1C is a D-Sub EMI junction shell from the 3357 series. It is a two-piece backshell designed for 9-position D-sub connectors with a 45° cable exit angle. The shell is made of ABS plastic with nickel over copper plating, providing shielding against EMI and ESD. The backshell includes assembly hardware such as jackscrews (#4-40), saddle washers, nuts, and screws, as well as a strain relief mechanism. It accommodates round cables with diameters from 0.210 to 0.320 inches. The operating temperature range is 0°C to +75°C, and the material has a UL 94V-0 flammability rating. The mounting type is free hanging (in-line). This backshell is suitable for applications requiring EMI protection and straightforward assembly in D-sub connector systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.54 | $5.54 |
| 10+ | $4.71 | $4.71 |
| 25+ | $4.41 | $4.41 |
| 50+ | $4.20 | $4.20 |
| 100+ | $4.00 | $4.00 |
| 300+ | $3.70 | $3.70 |
| 500+ | $3.57 | $3.57 |
| 1,000+ | $3.40 | $3.40 |
| 2,500+ | $3.19 | $3.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This backshell supports 9 positions.
The cable exit angle is 45 degrees.
Yes, it is shielded.
The shell is made of Acrylonitrile Butadiene Styrene (ABS) with nickel over copper plating.
The operating temperature range is 0°C to +75°C.
Includes jackscrews #4-44 × .438 in, saddle washers, nuts 4-40 UNC, screws 4-40 UNC, and strain relief.
The mounting type is free hanging (in-line).
