| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

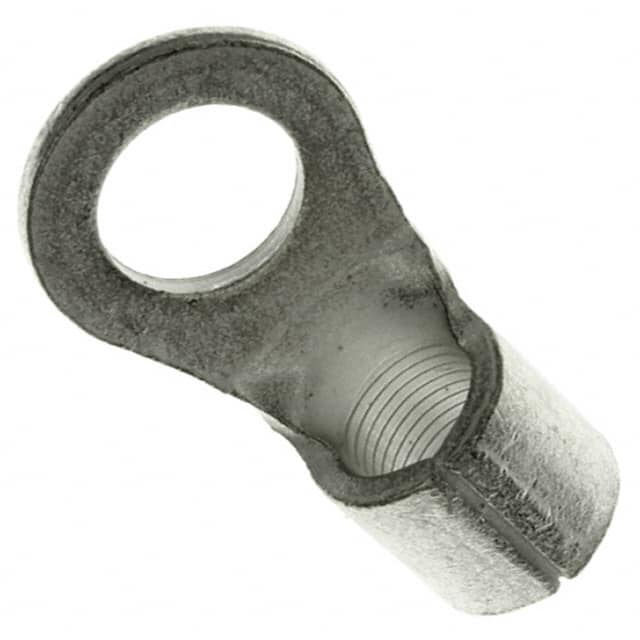

The TE Connectivity 33471 is a non-insulated ring terminal designed for 4 AWG wire with a 3/8 inch stud size. It features a circular terminal type and uses a crimp termination method for secure connections.
Constructed from tin-plated copper, this terminal offers good conductivity and corrosion resistance. The terminal has a brazed seam and serrated termination for reliable wire grip. It is designed for free hanging (in-line) mounting.
Mechanical dimensions include a thickness of 1.78 mm (0.070 inches), a width of 16.66 mm (0.656 inches), and a length of 33.38 mm (1.314 inches). This terminal is suitable for power distribution and heavy-duty electrical connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.72 | $1.72 |
| 10+ | $1.50 | $1.50 |
| 25+ | $1.43 | $1.43 |
| 100+ | $1.34 | $1.34 |
| 300+ | $1.21 | $1.21 |
| 500+ | $1.12 | $1.12 |
| 1,000+ | $0.98 | $0.98 |
| 2,500+ | $0.98 | $0.98 |
| 5,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This ring terminal is designed for 4 AWG wire.
This terminal fits a 3/8 inch stud.
No, this ring terminal is non-insulated.
The contact is made of copper with a tin finish.
The overall length is 33.38 mm (1.314 inches).
