| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Features | |
| Finish | |
| For Use With | |
| Length | |
| Length - Below Head | |
| Length - Threaded Portion Below Head | |
| Material | |
| Packaging Type | |
| Recommended Max Torque | |
| Screw, Thread Size | |
| Socket Thread Size | |
| Thread Size |

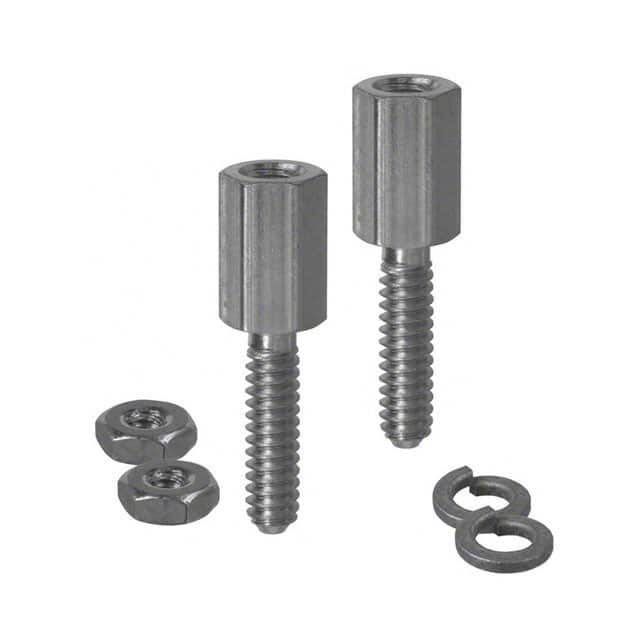

The 3M 3341-2 is a jackscrew socket accessory designed for use with standard D-Sub connectors. It provides mechanical retention and secure mating for connector shells.
This jackscrew features a #4-40 thread for both the socket and the screw portion. The overall length is 7.62mm (0.300") with a below-head length of 10.92mm and a threaded portion below head of 7.62mm. It is constructed from steel with a zinc clear chromate finish, offering corrosion resistance. The recommended maximum torque is 0.8 N·m.
The accessory includes a lock washer and is supplied in bulk packaging. It is part of the 3M 3341 series of I/O connector mounting hardware. Designed for D-Sub connectors, it is a reliable choice for connector fastening applications.
The thread size is #4-40 for both the socket and the screw.
The overall length is 7.62mm (0.300").
It is made of steel.
The finish is zinc with clear chromate.
The recommended maximum torque is 0.8 N·m.
Yes, it includes a lock washer.
It is supplied in bulk packaging.
