| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Features | |
| Finish | |
| For Use With | |
| Kit Contents | |
| Length | |
| Material | |
| Mounting Type | |
| Recommended Max Torque | |
| Thread Size |

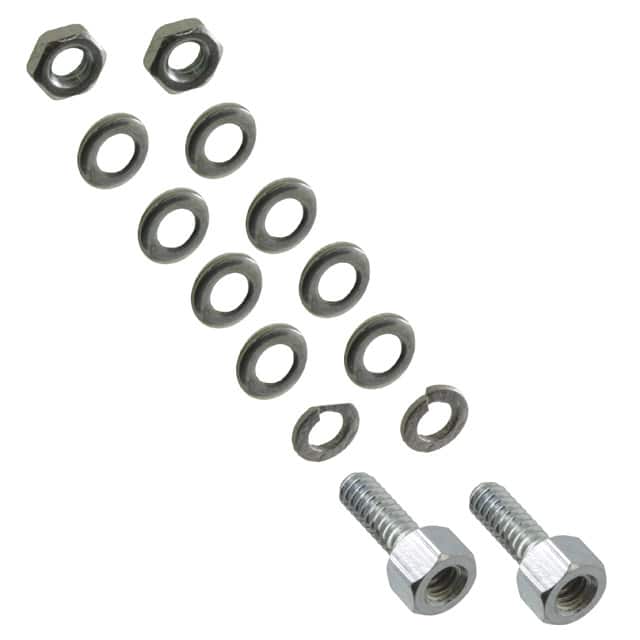

The 3M 3341-1S is a jackscrew socket kit designed for use with standard D-Sub connectors. This hardware kit provides mounting and locking capability for reliable connections in cable assemblies and panel-mounted applications. The kit includes two jack sockets, eight 0.031-inch thick spacers, two lock washers, and two 4-40 nuts, providing all necessary components for a secure assembly.
The jackscrew sockets feature a 4-40 socket and 4-40 screw thread size and measure 7.87mm (0.310 inches) in length. They are constructed from steel with a zinc and clear chromate finish, offering corrosion resistance and durability. The recommended maximum torque for installation is 7.0 in·lbf (0.8 N·m), ensuring proper tightening without damage.
This kit is suitable for panel mounting configurations and is compatible with standard D-Sub connectors. The hardware components are designed for repeated mating cycles in industrial, commercial, and data communication equipment where D-Sub connector retention is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.49 | $3.49 |
| 10+ | $2.96 | $2.96 |
| 25+ | $2.78 | $2.78 |
| 50+ | $2.64 | $2.64 |
| 100+ | $2.52 | $2.52 |
| 300+ | $2.33 | $2.33 |
| 600+ | $2.22 | $2.22 |
| 1,200+ | $2.11 | $2.11 |
| 2,700+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 4-40 socket and 4-40 screw.
The length is 7.87mm (0.310 inches).
The hardware is made of steel with a zinc and clear chromate finish.
The recommended maximum torque is 7.0 in·lbf (0.8 N·m).
The kit includes 2 jack sockets, 8 spacers (0.031 inch thick), 2 lock washers, and 2 4-40 nuts.
It is designed for use with standard D-Sub connectors.
