| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque |

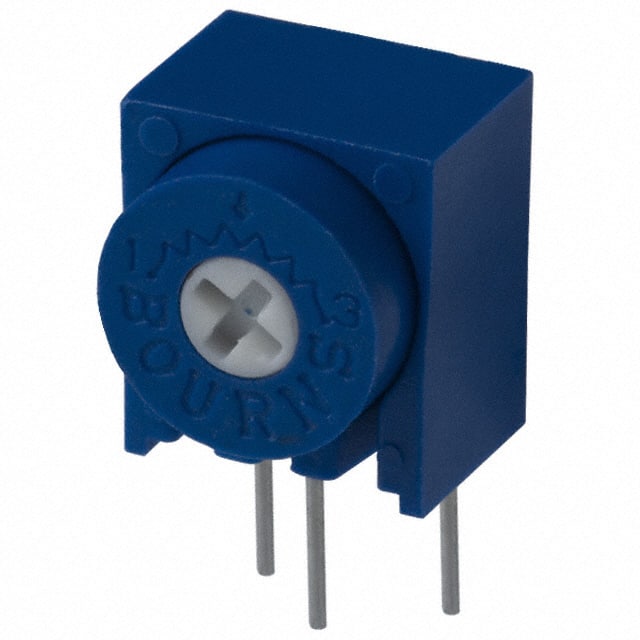

The Bourns 3339W-1-202LF is a cermet trimmer potentiometer from the 3339 series, designed for industrial applications. It offers a standard resistance of 2 kΩ with a tolerance of ±10% and a power rating of 0.5W at 85°C.
This trimmer features a four-turn effective travel and a unique planetary drive for precise wiper setting. The adjustment type is side adjustment, and it terminates with PC pins suitable for through-hole mounting. The component is sealed and operates within a temperature range of -55°C to +150°C.
Key electrical characteristics include infinite resolution, 1,000 megohms minimum insulation resistance, and 600 VAC dielectric strength at sea level. Environmental testing includes resistance to humidity, vibration (30 G), and shock (100 G), with a rotational life of 200 cycles.
The physical dimensions are rectangular, measuring 0.375" x 0.320" face (9.53mm x 8.13mm). The standard packaging is 50 pieces per tube. This model is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standard resistance of the 3339W-1-202LF trimmer potentiometer is 2 kΩ.
The tolerance for the 3339W-1-202LF trimmer potentiometer is ±10%.
The power rating of the 3339W-1-202LF trimmer potentiometer is 0.5W at 85°C.
The temperature coefficient of the 3339W-1-202LF trimmer potentiometer is ±100ppm/°C.
The operating temperature range for the 3339W-1-202LF trimmer potentiometer is -55°C to +150°C.
The 3339W-1-202LF trimmer potentiometer is designed for through-hole mounting.
The standard package quantity for the 3339W-1-202LF trimmer potentiometer is 50 pieces per tube.
