| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,000 pcs
|
7000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Diameter | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque |

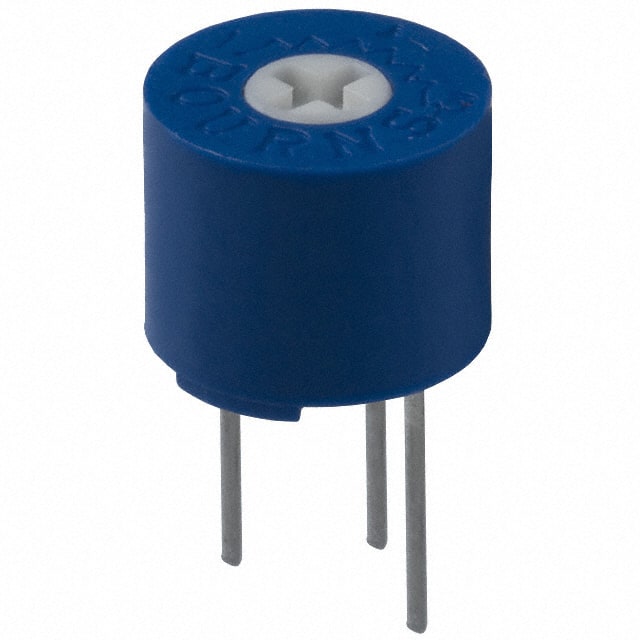

The Bourns 3339P-1-202 is a 5/16" round trimmer potentiometer from the 3339 series. It offers a standard resistance of 2 kΩ with a ±10% tolerance and a power rating of 0.5W at 85°C. This industrial-grade potentiometer features a cermet resistive element and a four-turn effective travel for precise adjustment.
Designed for through-hole mounting, it utilizes PC pins for termination. The operating temperature range is -55°C to +150°C, with a temperature coefficient of ±100ppm/°C. The unit is sealed and built for reliable performance in demanding applications.
Key electrical characteristics include an insulation resistance of 1,000 megohms minimum at 500 VDC and a dielectric strength of 600 VAC at sea level. Environmental testing includes humidity, vibration, and shock resistance, along with a load life of 1,000 hours.
This model is specified with RoHS3 compliance and an MSL 1 rating. It is suitable for various electronic circuit adjustments requiring stable and accurate resistance settings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standard resistance is 2 kΩ.
The power rating is 0.5W at 85°C.
The temperature coefficient is ±100ppm/°C.
It has 4 turns.
It uses through-hole mounting.
The standard package is 50 pieces per tube.
