| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
227 pcs
|
227 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

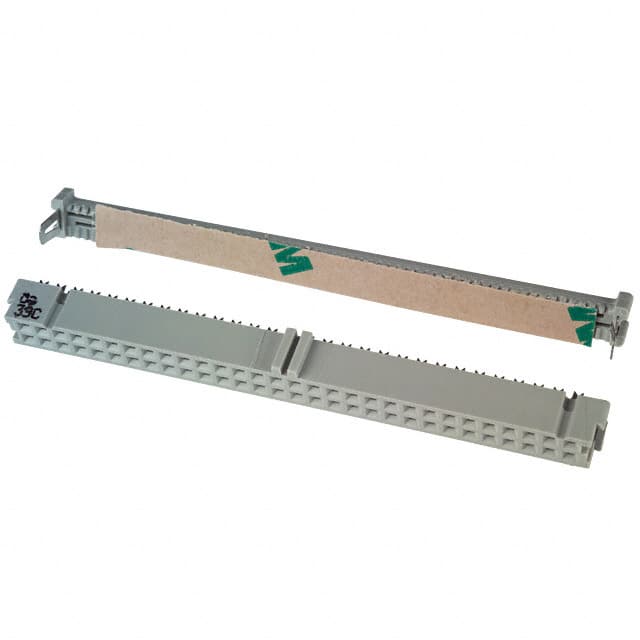

The 3334-6600 from 3M is a 60-position IDC wiremount socket from the Pak 100 series. It accepts ribbon cable with 26-28 AWG conductors and terminates via insulation displacement connection (IDC), eliminating the need for stripping. The receptacle features two rows of gold-plated female socket contacts with 30.0μin (0.76μm) thickness for reliable low-resistance connections. Designed for free-hanging (in-line) mounting, the connector includes feed-through capability and a polarizing key for correct alignment.
With a standard 2.54mm (0.100") pitch and row spacing, this connector is suitable for high-density signal or data cable assemblies. The gray housing provides visual identification while the robust IDC termination ensures consistent electrical performance. As a wiremount socket, it is commonly used in internal wiring harnesses, industrial control systems, and data communication equipment where quick assembly and reliable contact are required.
The 3334-6600 is RoHS3 compliant and rated MSL 1 (unlimited) per manufacturer listings. For design flexibility, the connector supports both stranded and solid wire types within the specified gauge range.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.18 | $13.18 |
| 10+ | $11.20 | $11.20 |
| 25+ | $10.50 | $10.50 |
| 50+ | $10.00 | $10.00 |
| 100+ | $9.52 | $9.52 |
| 300+ | $8.81 | $8.81 |
| 500+ | $8.50 | $8.50 |
| 1,000+ | $8.10 | $8.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions arranged in 2 rows.
0.100" (2.54mm) pitch and row spacing.
Free Hanging (In-Line) mounting.
26-28 AWG, stranded or solid wire.
Gold plating with 30.0µin (0.76µm) thickness.
IDC (Insulation Displacement Connection) for ribbon cable.
