| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Failure Rate | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Standard Package Qty | |
| Termination Style | |
| Voltage Rating | |
| Weight | |
| Wire Gauge | |
| Wire Type |

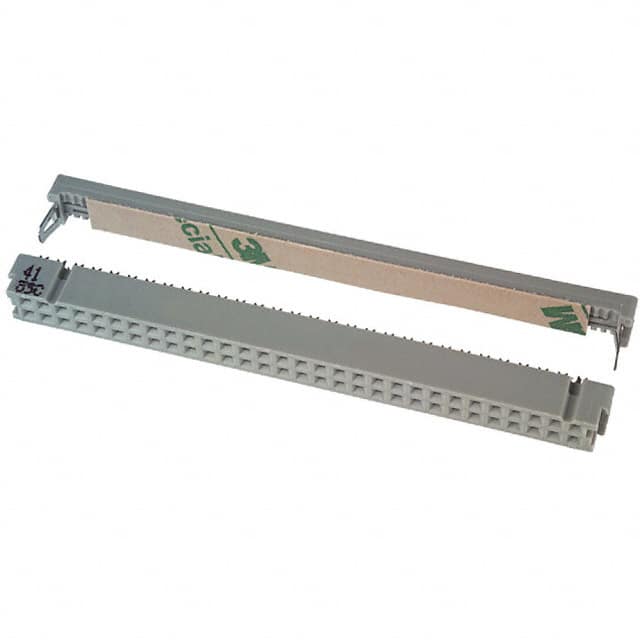

The 3M 3334-6000 is a 60-position, 2-row right-angle receptacle connector from the 3000 series, designed for IDC termination to ribbon cable with 26-28 AWG wire. It features a free-hanging (in-line) mounting style, making it suitable for cable-to-board interconnections.
The connector is rated for 1A current and 500V voltage. Contacts are female sockets made of copper alloy with a gold plating thickness of 30.0µin (0.76µm). The housing is gray and lead-free. Operating temperature range is -55°C to 105°C.
Termination is via Insulation Displacement Connection (IDC), accommodating 26-28 AWG ribbon cable. The connector is supplied in bulk packaging with a standard package quantity of 100. The row spacing is 2.54mm (0.100").
| Qty | Low | High |
|---|---|---|
| 1+ | $13.18 | $13.18 |
| 10+ | $11.20 | $11.20 |
| 25+ | $10.50 | $10.50 |
| 50+ | $10.00 | $10.00 |
| 100+ | $9.52 | $9.52 |
| 300+ | $8.81 | $8.81 |
| 500+ | $8.50 | $8.50 |
| 1,000+ | $8.10 | $8.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
2.54mm (0.100").
1A.
500V.
Free Hanging (In-Line).
26-28 AWG ribbon cable.
Gold plating with 30.0µin (0.76µm) thickness.
