| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,100 pcs
|
17100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Diameter | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Prop 65 | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| SVHC Present | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

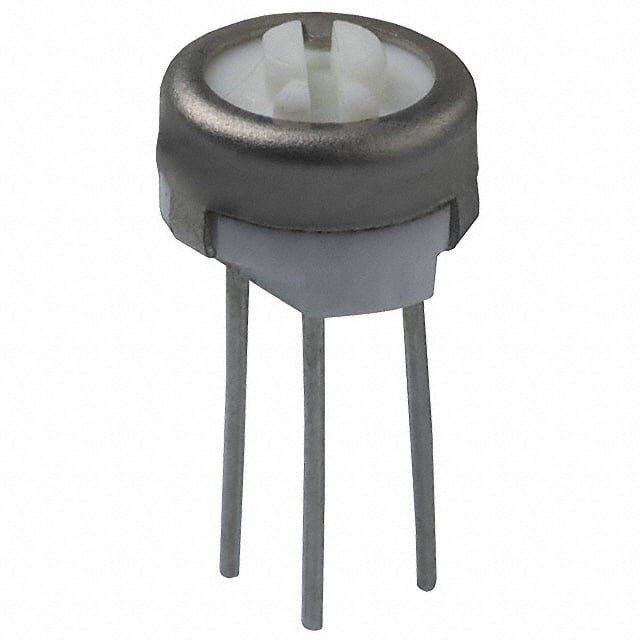

The Bourns 3329H-1-502LF is a 1/4 inch round, single-turn, cermet trimmer potentiometer. It offers a resistance range of 5 kΩ with a standard tolerance of ±10%. This industrial-grade potentiometer is sealed and features PC pin termination for through-hole mounting.
With a power rating of 0.5W at 85°C, the 3329H-1-502LF is suitable for various electronic circuits. It operates within a wide temperature range of -55°C to +150°C and has a temperature coefficient of ±100 PPM/°C. The adjustment angle is 240° nominal, and it provides infinite resolution.
Environmental testing includes humidity resistance per MIL-STD-202 Method 103, vibration resistance up to 30G, and shock resistance up to 100G. Load life testing is rated for 1,000 hours at 0.5W @ 85°C, and rotational life is rated for 200 cycles.
This component is listed on the QPL for style RJ50 per MIL-PRF-22097 and RJR50 per High-Rel MIL-PRF-39035. A RoHS compliant version is available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 3329H-1-502LF trimmer potentiometer is 5 kΩ.
The power rating is 0.5W at 85°C.
The operating temperature range is -55°C to +150°C.
It is mounted through hole using PC pins.
The tolerance is ±10%.
The temperature coefficient is ±100 PPM/°C.
Yes, it is RoHS3 Compliant.
