| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
481 pcs
|
481 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Housing Material | |
| Industrial Grade | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Sound Pressure Level (SPL) | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

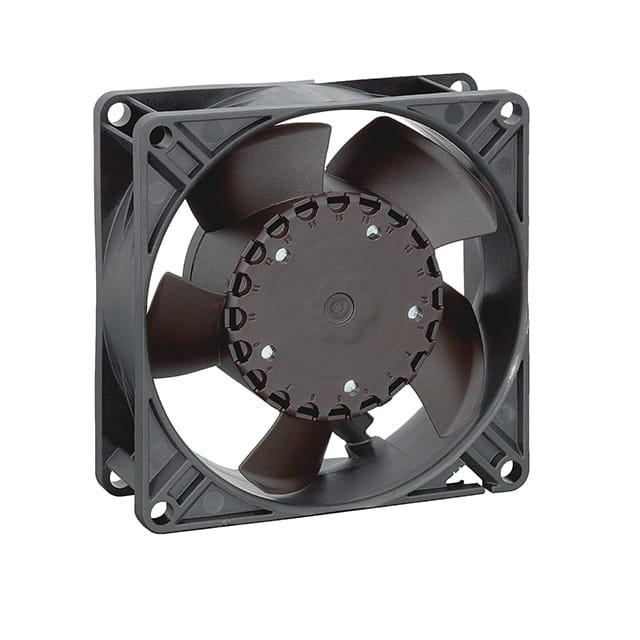

The Ebm-Papst 3314NN is a DC tubeaxial fan designed for reliable cooling in a compact 92 x 92 x 32 mm form factor. It operates at a nominal voltage of 24 VDC with a voltage range of 18 to 28 VDC, delivering an airflow of 80 m³/h at 2650 RPM while consuming only 1.8 W. The fan produces a sound pressure level of 35 dB(A) and a sound power level of 4.7 B.
The fan is constructed with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller, ensuring durability and lightweight performance at 0.19 kg. It features ball bearings for long service life, rated at 65,000 hours at 40 °C and 27,500 hours at maximum temperature. The airflow direction is exhaust over struts, with clockwise rotation when viewed toward the rotor.
The 3314NN is protected to IP40 and includes 2 wire leads (AWG 24 UL 1061, TR 64) for termination. It is suitable for a wide range of thermal management applications requiring efficient and quiet cooling.
| Qty | Low | High |
|---|---|---|
| 1+ | $55.51 | $55.51 |
| 10+ | $49.23 | $49.23 |
| 25+ | $45.99 | $45.99 |
| 42+ | $45.82 | $45.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal voltage is 24 VDC, with a range of 18 to 28 VDC.
The fan delivers 80 m³/h at a speed of 2650 RPM.
The fan operates from -20 °C to 75 °C.
It uses ball bearings with a service life of 65,000 hours at 40 °C and 27,500 hours at maximum temperature.
The fan measures 92 x 92 x 32 mm and weighs 0.19 kg.
The fan has an IP40 degree of protection.
