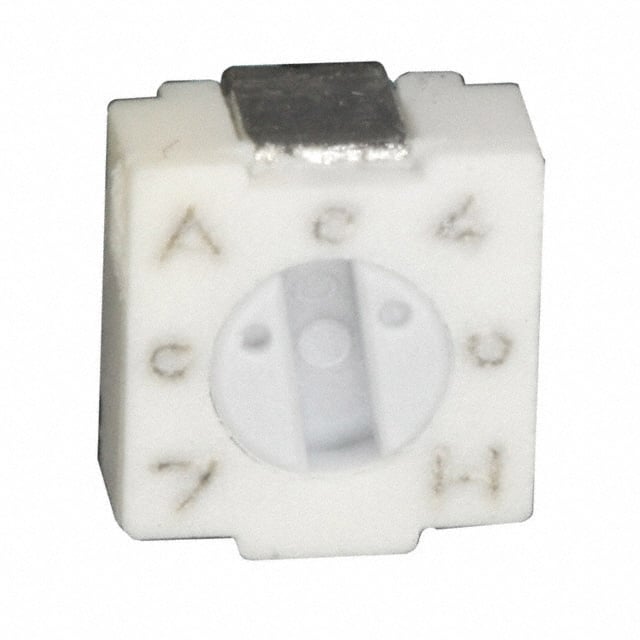

3313X-1-103E The Bourns 3313X-1-103E is a 10 kΩ trimmer potentiometer with a 0.125W power rating and ±20% tolerance. It features a Cermet resistive element and a surface mount design.
Mfr Part #:

3313X-1-103E

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3313X-1-103E is a 10 kΩ trimmer potentiometer with a 0.125W power rating and ±20% tolerance. It features a Cermet resistive element and a surface mount design.
✓ Total Stock: 228 pcs
$ Price Range: $0.05

3313X-1-103E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
228 pcs
On Request
228 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3313X-1-103E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Insulation Resistance
Lead Spacing
Lead Style
Mounting Type
Number of Turns
Operating Temperature Range
Power (Watts)
Resistance
Resistive Material
Resolution
Storage Temperature
Tape & Reel
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

3313X-1-103E Description

Short technical summary and product information.

The Bourns 3313X-1-103E is a 3 mm square, single-turn, cermet trimming potentiometer designed for surface mount applications. It offers a standard resistance of 10 kΩ with a tolerance of ±20% and a power rating of 0.125W at 70°C.



This potentiometer features infinite resolution and a top adjustment type with a 220° nominal adjustment angle. The operating temperature range is -55°C to +125°C. The J lead termination style and rectangular package dimensions of 0.138" x 0.126" face (3.50mm x 3.20mm) are suitable for automated manufacturing processes.



Environmental testing includes humidity, vibration, shock, load life, and thermal shock, with specified limits for resistance and insulation. The unit is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.



Key electrical characteristics include an insulation resistance of 100 MΩ min. @ 500 VDC and dielectric strength of 500 VAC at sea level. The temperature coefficient is ±100ppm/°C. The sealed design provides 100 cycle rotational and seal life.

3313X-1-103E Quick Information

Product Type: Trimmer Potentiometer
Series: 3313
Canonical Name: Bourns 3313 Series 3 mm Trimpot Trimming Potentiometer
Subcategory: Cermet

3313X-1-103E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

3313X-1-103E Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3313X-1-103E Features

  • 3 mm square single-turn cermet trimmer potentiometer.
  • Surface mount compatible with J lead termination.
  • 10 kΩ resistance with ±20% tolerance.
  • 0.125W power rating at 70°C.
  • Wide operating temperature range of -55°C to +125°C.

3313X-1-103E Applications

  • Ideal for automated surface mount assembly.
  • Suitable for in-circuit adjustments.
  • Used in RF applications due to plastic housing.
  • General purpose electronic circuit calibration.

3313X-1-103E FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3313X-1-103E trimmer potentiometer?

The Bourns 3313X-1-103E has a resistance of 10 kΩ.

What is the power rating of the 3313X-1-103E?

The power rating is 0.125W at 70°C and 0W at 125°C.

What is the operating temperature range for this trimmer potentiometer?

The operating temperature range is -55°C to +125°C.

What is the tolerance of the Bourns 3313X-1-103E?

The tolerance is ±20%.

What type of material is used for the resistive element?

The resistive element is Cermet.

How is the 3313X-1-103E mounted?

It is a surface mount component.
