| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

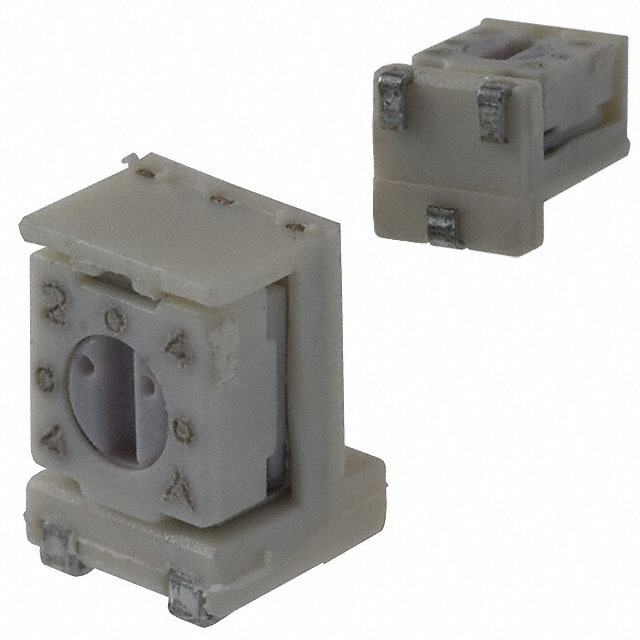

The Bourns 3313S-1-201E is a 3 mm square, single-turn, sealed cermet trimmer potentiometer. It offers a resistance value of 200 Ohms with a standard tolerance of ±20%. This model is designed for surface mount manufacturing processes and features a J lead termination style.
With a power rating of 0.125W at 70°C, the 3313S-1-201E operates within a temperature range of -55°C to +125°C. Its temperature coefficient is ±100ppm/°C. The potentiometer has an adjustment angle of 220° and a rotational life of 100 cycles. It is compatible with surface mount processes and is sealed for durability.
Key electrical characteristics include infinite resolution and a resistance tolerance of ±20%. Environmental testing includes seal tests, humidity resistance, vibration, and shock resistance, ensuring reliability in various conditions. The component is suitable for applications requiring precise adjustments in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 3313S-1-201E is 200 Ohms.
The power rating for the 3313S-1-201E at 70°C is 0.125W.
The temperature coefficient is ±100ppm/°C.
The 3313S-1-201E requires surface mounting.
The termination style is J Lead.
The rotational life is 100 cycles.
Yes, this part is RoHS3 Compliant.
