| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,170 pcs
|
10170 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
870 pcs
|
870 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Halogen Free | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistance Tolerance | |
| Resistive Material | |
| Resolution | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

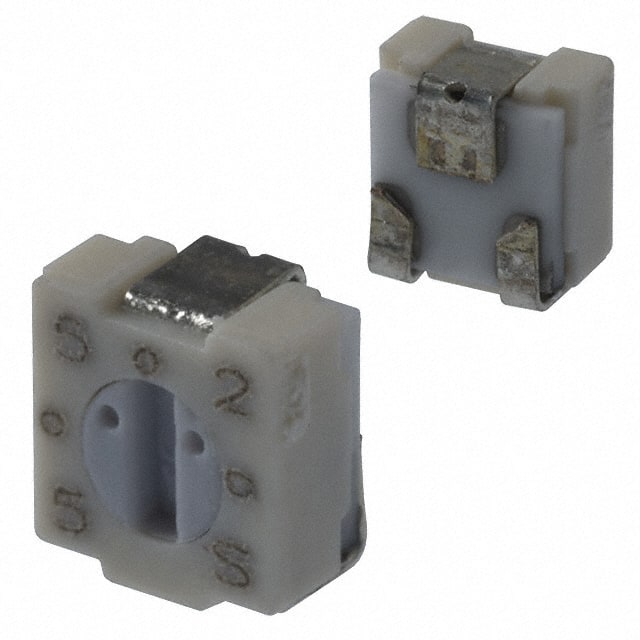

The Bourns 3313J-1-501E is a 3 mm square, single-turn cermet trimming potentiometer designed for surface mount applications. It offers a resistance value of 500 Ohms with a standard tolerance of ±20% and a power rating of 0.125W at 70°C.
This potentiometer features a top adjustment with a J lead termination style and a rectangular package measuring 0.138" x 0.126" (3.50mm x 3.20mm). It is compatible with surface mount manufacturing processes and has a rotor stop for in-circuit adjustment. The operating temperature range is -55°C to +125°C.
Environmental characteristics include a maximum soldering exposure of 250°C for 10 seconds, and it is RoHS compliant and Halogen free. The unit has a rotational life of 100 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the 3313J-1-501E is 500 Ohms.
The tolerance is ±20%.
The power rating is 0.125W at 70°C.
The temperature coefficient is ±100ppm/°C.
It uses surface mount.
The termination style is J Lead.
The operating temperature range is -55°C to +125°C.
