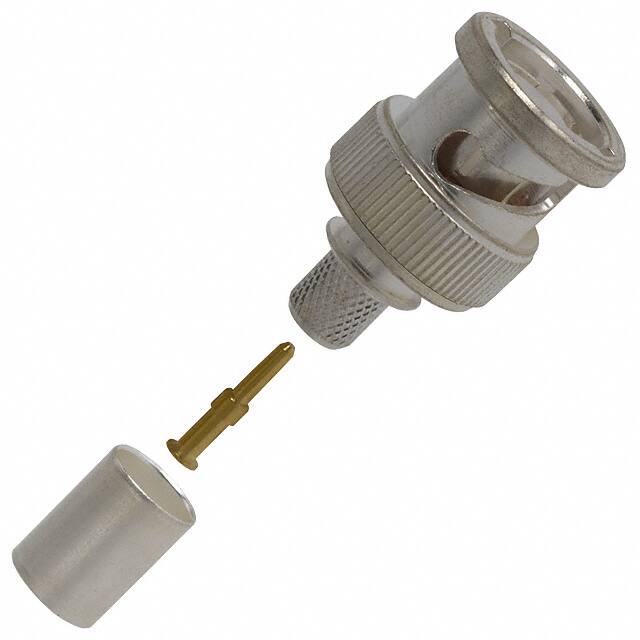

331350 BNC plug connector, 50 Ohm, straight, crimp termination, bayonet lock, rated for 4 GHz. Suitable for RG-59, RG-62, and RG-180A cables.
Mfr Part #:

331350

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
BNC plug connector, 50 Ohm, straight, crimp termination, bayonet lock, rated for 4 GHz. Suitable for RG-59, RG-62, and RG-180A cables.
✓ Total Stock: 3 pcs

331350 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

331350 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Dielectric Material
Fastening Type
Frequency
Grade
Housing Color
Impedance
Mounting Type
Number of Ports
Operating Temperature Range
Shield Termination
View Similar Products (0)

331350 Description

Short technical summary and product information.

This is a TE Connectivity BNC plug connector (part number 2-331350-6) designed for coaxial cable termination. It features a 50 Ohm impedance, operates up to 4 GHz, and uses a bayonet locking mechanism for quick connect/disconnect. The connector is sealable and has a straight body orientation.



The connector is crimp-type for both center contact and shield, with dual crimp capability. The body is made of brass with silver plating, center contact is brass with gold plating, and dielectric is PTFE. It is compatible with RG-59, RG-62, RG-180A, and RG-195 cable types. Operating temperature range is -65°C to 165°C.



This connector is suitable for various RF applications including telecommunications, test equipment, and broadcast systems. It is categorized as a military-grade component and is RoHS compliant with exemptions. The mated outer diameter is approximately 14.53 mm.

331350 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: BNC Connector Plug, Male Pin, 50 Ohm, Bayonet Lock, Crimp, Straight, 4 GHz, 1 Port
Subcategory: Coaxial Connector (RF) Assemblies

331350 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Current ECHA Candidate List: JUNE 2024 (241) - SVHC > Threshold: Pb (3.7% in Component Part)
Lead Free: Yes

331350 Features

  • 50 Ohm impedance BNC plug connector.
  • 4 GHz maximum operating frequency.
  • Bayonet lock for quick coupling.
  • Dual crimp termination for reliability.
  • Military grade and sealable design.

331350 Applications

  • Ideal for RF signal transmission in telecommunications.
  • Used in test and measurement equipment.
  • Suitable for broadcast and video systems.
  • Compatible with RG-59 and RG-62 cables.

331350 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this connector?

50 Ohm.

What is the frequency rating?

4 GHz.

How many positions does it have?

1 position.

What is the mounting type?

Free hanging (in-line).

What termination method is used?

Crimp for both center contact and shield.

What is the operating temperature range?

-65°C to 165°C.

Which cable types are compatible?

RG-59, RG-59A, RG-59B, RG-62, RG-62A, RG-62B, RG-180A, RG-195.
