| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
465 pcs
|
465 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustability Rheostat | |
| Adjustability Voltage Divider | |
| Adjustment Angle | |
| Adjustment Type | |
| Contact Resistance Variation | |
| Dielectric Strength (@ 70,000 Feet) | |
| Dielectric Strength (@ Sea Level) | |
| End Resistance | |
| Humidity | |
| Insulation Resistance | |
| Lead Style | |
| Load Life | |
| Mechanical Stop | |
| Mounting Type | |
| Number of Turns | |
| Operating Temperature Range (Minimum/Maximum) | |
| Power (Watts) | |
| Power Rating (Nominal @ 125 °C) | |
| Power Rating (Nominal @ 70 °C) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Rotational Life | |
| Seal Test | |
| Shock | |
| Stop Strength | |
| Temperature Coefficient | |
| Termination Style | |
| Thermal Shock | |
| Tolerance | |
| Torque | |
| Vibration | |
| Weight |

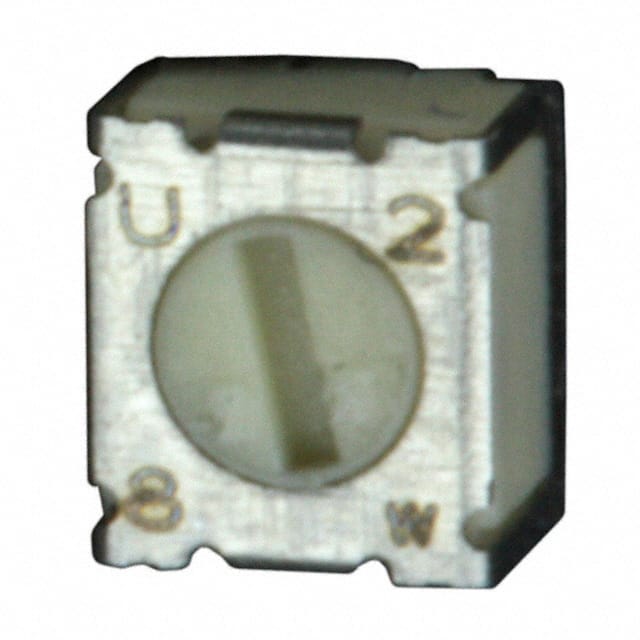

The Bourns 3312J-1-104E is a 2 mm SMD Trimpot trimming potentiometer. This single-turn, cermet potentiometer is sealed and compatible with surface mount manufacturing processes, offering a miniature design for flexibility.
Key electrical characteristics include a resistance of 100 kΩ with a tolerance of ±20% and a power rating of 0.1W at 70°C. The temperature coefficient is ±100ppm/°C. Environmental testing includes humidity resistance per MIL-STD-202 Method 106, vibration resistance up to 20 G, and shock resistance up to 100 G.
This device features a J lead termination style and top adjustment. Its compact rectangular size measures 0.110" x 0.098" face (2.80mm x 2.50mm). The operating temperature range is from -55°C to +125°C. Standard packaging is 500 pieces per 7-inch reel.
RoHS3 compliant, this trimmer potentiometer is suitable for various electronic applications requiring precise resistance adjustments in a surface-mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 kΩ.
The tolerance is ±20%.
The power rating is 0.1W at 70°C.
The temperature coefficient is ±100ppm/°C.
It is a surface mount device.
The termination style is J Lead.
The operating temperature range is -55°C to +125°C.
