| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

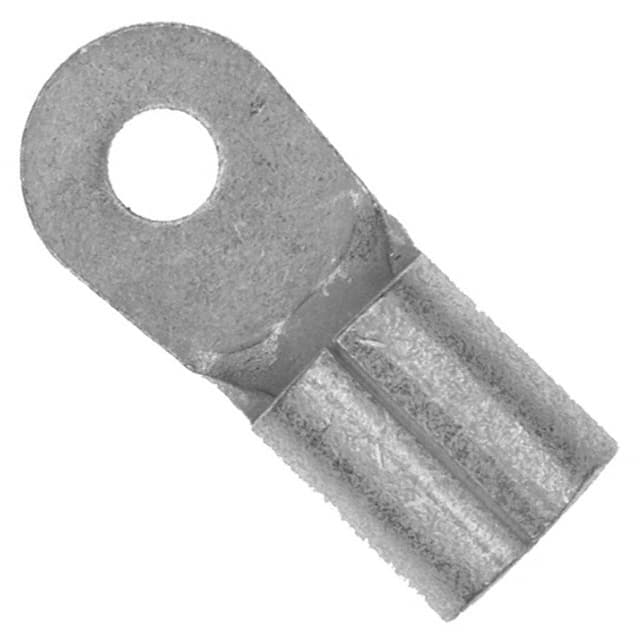

The TE Connectivity 33114 is a circular ring terminal designed for terminating 4 AWG wire. It features a #10 stud size and is non-insulated, making it suitable for applications where insulation is not required. The terminal is constructed from copper with a tin finish, providing good conductivity and corrosion resistance. It uses a crimp termination style and is designed for free hanging (in-line) mounting. The terminal includes a brazed seam and serrated termination for reliable connections. Dimensions include a thickness of 1.78mm, width of 12.70mm, and length of 30.45mm. This terminal is RoHS3 compliant (unverified) and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.58 | $2.58 |
| 10+ | $2.25 | $2.25 |
| 25+ | $2.16 | $2.16 |
| 100+ | $2.01 | $2.01 |
| 300+ | $1.82 | $1.82 |
| 500+ | $1.68 | $1.68 |
| 1,000+ | $1.46 | $1.46 |
| 3,000+ | $1.37 | $1.37 |
| 5,000+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The stud size is #10 (10 Stud).
It accepts 4 AWG wire.
No, it is non-insulated.
Contact material is copper with a tin finish.
Crimp termination.
Free hanging (in-line) mounting.
Thickness: 1.78mm, Width: 12.70mm, Length: 30.45mm.
