| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Contact Resistance Variation | |
| Dielectric Strength (Minimum @ 70,000 Feet) | |
| Dielectric Strength (Minimum @ Sea Level) | |
| Effective Electrical Angle | |
| End Resistance | |
| Features | |
| Independent Linearity | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature Range | |
| Power (Watts) | |
| Power Rating (Nominal @ 70 °C) | |
| Resistance | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Storage Temperature | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Theoretical Resolution | |
| Tolerance |

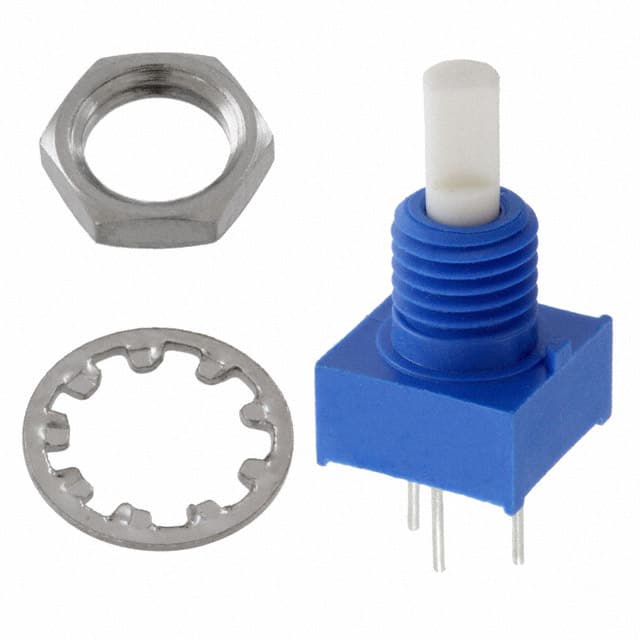

The Bourns 3310P-101-103L is a 9mm square sealed panel control potentiometer from the 3310 series. It offers a standard resistance range of 1 k ohms to 1 megohm, with a nominal resistance of 10k ohms and a total resistance tolerance of ±20% for linear tapers.
Key electrical characteristics include an independent linearity of ±5%, an end resistance of 2% or 2 ohms maximum, and a contact resistance variation of 1% or 1 ohm maximum. The potentiometer has an effective electrical angle of 270 ±15 degrees and a power rating of 0.25 watts at 70 °C. It features a conductive plastic resistive material and a linear taper.
Designed for panel mounting, this potentiometer has a 1/4-32 bushing thread and a flatted actuator with a diameter of 0.125" (3.18mm) and a length of 0.500" (12.70mm). The termination style is PC pins, and it has a single gang and no built-in switch. The operating temperature range is -40 °C to +125 °C. The unit is sealed and withstands typical industrial washing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3310P-101-103L potentiometer has a resistance of 10k Ohms.
The total resistance tolerance for linear tapers is ±20%.
The power rating is 0.25W at 70 °C.
The operating temperature range is -40 °C to +125 °C.
It supports panel mounting.
The resistive material is conductive plastic.
