| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,987 pcs
|
1987 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

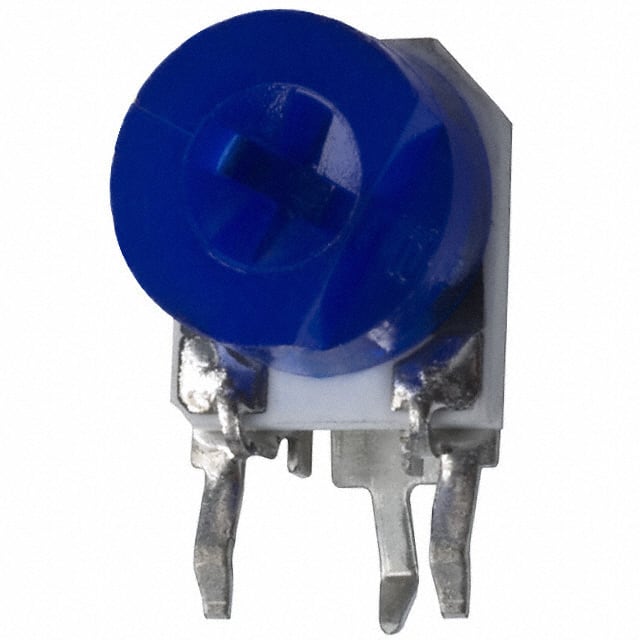

The Bourns 3306K-1-202 is a 6mm round, single-turn, cermet trimming potentiometer designed for industrial applications. It offers a resistance of 2 kΩ with a tolerance of ±25% and a power rating of 0.2W at 70°C.
This trimmer features side adjustment with a cross slot and PC pin termination style, suitable for through-hole mounting. The operating temperature range is -25°C to +100°C, with a temperature coefficient of ±250 ppm/°C. The mechanical angle is 240° ±10°, and the adjustment angle is 215° nominal.
The potentiometer has a rectangular form factor measuring 0.268" x 0.319" (6.81mm x 8.10mm). It is packaged in bags of 200 pieces. The series is known as Trimpot® and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2 kΩ.
The tolerance is ±25%.
The power rating is 0.2W at 70°C.
The temperature coefficient is ±250 ppm/°C.
It features side adjustment.
It uses PC pins.
The standard packaging is 200 pieces per bag.
