| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70,000 pcs
|
70000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

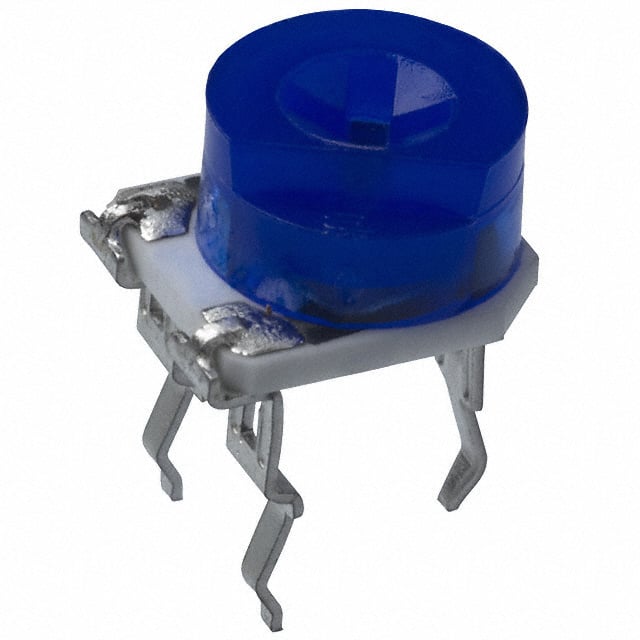

The Bourns 3306F-1-502 is a 6 mm round, single-turn trimmer potentiometer from the Trimpot® 3306 series. It offers a resistance of 5 kΩ with a standard tolerance of ±25% and a power rating of 0.2W at 70°C.
This open-frame potentiometer is designed for through-hole mounting and features PC pin terminations for easy integration into printed circuit boards. The adjustment type is top adjustment, allowing for precise setting of resistance values. The cermet resistive material ensures reliability and stability across its operating temperature range of -25°C to +100°C.
Key electrical characteristics include a ±250 ppm/°C temperature coefficient and an adjustment angle of 215° nominal. The physical dimensions are approximately 8.10mm x 6.80mm face. It is packaged in bags of 200 pieces.
This component is suitable for various trimmer applications where precise resistance adjustment is required. Its robust construction and reliable performance make it a suitable choice for industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the 3306F-1-502 trimmer potentiometer is 5 kΩ.
The power rating of the 3306F-1-502 trimmer potentiometer is 0.2W, or 1/5W.
The temperature coefficient for the 3306F-1-502 is ±250 ppm/°C.
The 3306F-1-502 trimmer potentiometer has 1 turn.
The 3306F-1-502 offers top adjustment.
The standard packaging for the 3306F-1-502 is 200 pcs per bag.
