| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque |

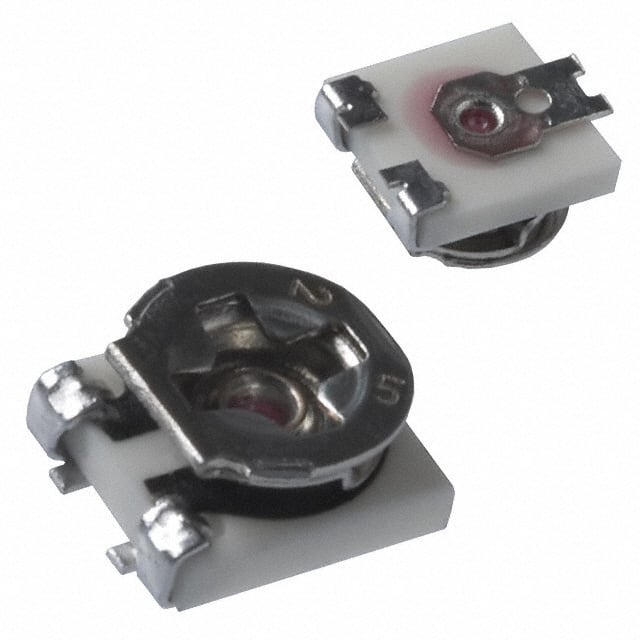

The Bourns 3303W-3-203E is a 3mm SMD trimming potentiometer from the 3303 series. It offers a resistance value of 20 kOhms with a tolerance of ±25% and a power rating of 0.15 watts at 70°C.
This cermet trimmer potentiometer is designed for reflow processing and features a top adjustment type with infinite resolution. It has a temperature range of -40°C to +125°C and a temperature coefficient of ±250 ppm/°C.
The device is suitable for automatic assembly equipment, supplied in 8 mm embossed tape. It is mounted using a surface mount technique with J lead termination. The dimensions are rectangular, measuring 0.148" x 0.118" face (3.75mm x 3.00mm).
Environmental characteristics include resistance to soldering heat up to 260°C for 10 seconds, and it is rated for 500 hours of load life at rated power. The MSL is 1, and it is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3303W-3-203E has a resistance of 20 kOhms.
The power rating is 0.15 watt at 70°C.
The tolerance is ±25%.
The operating temperature range is -40°C to +125°C.
It is a surface mount component with J lead termination.
The standard packaging is 2000 pieces per 7-inch reel.
