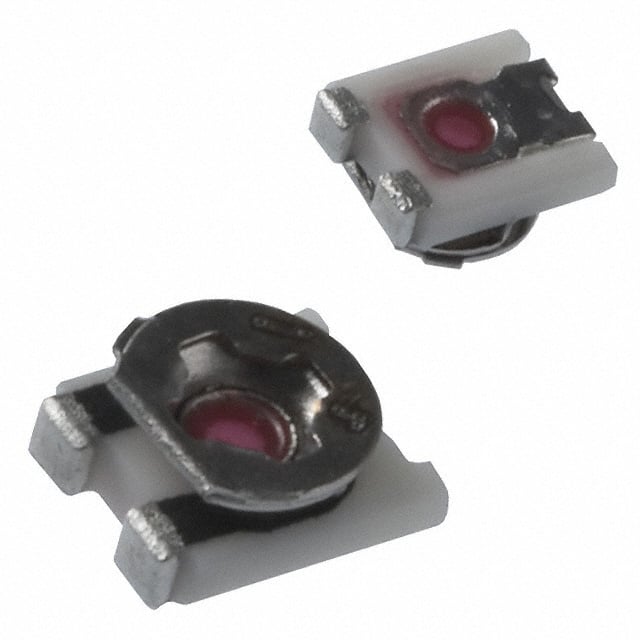

3302X-3-502E The Bourns 3302X-3-502E is a 5 kΩ trimmer potentiometer featuring a Cermet resistive material and top adjustment. It is designed for surface mount applications with J lead termination.
Mfr Part #:

3302X-3-502E

Available from 3 distributors
Mfr Name: Bourns
Bourns
The Bourns 3302X-3-502E is a 5 kΩ trimmer potentiometer featuring a Cermet resistive material and top adjustment. It is designed for surface mount applications with J lead termination.
✓ Total Stock: 7,414 pcs
$ Price Range: $0.05

3302X-3-502E Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,507 pcs
On Request
2507 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2,507 pcs
On Request
2507 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
2,400 pcs
On Request
2400 pcs On Request 1 On Request On Request 06+11 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3302X-3-502E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Resolution
Storage Temperature
Tape & Reel
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
View Similar Products (0)

3302X-3-502E Description

Short technical summary and product information.

This Bourns 3302X-3-502E is a single-turn trimmer potentiometer from the Trimpot TC42 series, offering a resistance of 5 kΩ with a tolerance of ±25%. It is constructed with a Cermet resistive material and designed for top adjustment.



The potentiometer has a power rating of 0.15W at 70°C and a temperature coefficient of ±250ppm/°C, operating within a temperature range of -40°C to +85°C. Its size is rectangular, measuring 0.108" x 0.087" face (2.75mm x 2.20mm).



Designed for surface mounting, it features J lead termination and is supplied in tape and reel packaging, meeting EIA-481 standards. The mechanical angle is continuous, and the adjustment angle is 260° ±20°.



Key electrical characteristics include an absolute minimum resistance of 20 ohms max. (≤1K) or 5% max. (>1K), and a contact resistance variation of 5% max. The resolution is infinite. Load life is rated at ±5% within 500 hours at 70°C.

3302X-3-502E Quick Information

Product Type: Trimmer Potentiometer
Series: TC42
Canonical Name: Bourns 3302X-3-502E Trimmer Potentiometer
Subcategory: Trimmer Potentiometer

3302X-3-502E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3302X-3-502E Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3302X-3-502E Features

  • 5 kΩ resistance with ±25% tolerance.
  • 0.15W power rating at 70°C.
  • Cermet resistive material for stability.
  • Surface mount with J lead termination.
  • Supplied in tape and reel packaging.

3302X-3-502E Applications

  • Ideal for circuit calibration adjustments.
  • Suitable for automated assembly processes.
  • Used in electronic control systems.
  • Applications requiring precise resistance setting.

3302X-3-502E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3302X-3-502E trimmer potentiometer?

The Bourns 3302X-3-502E trimmer potentiometer has a resistance of 5 kΩ.

What is the power rating for the 3302X-3-502E trimmer potentiometer?

The power rating for the 3302X-3-502E trimmer potentiometer is 0.15W at 70°C.

What is the tolerance of the Bourns 3302X-3-502E trimmer potentiometer?

The tolerance of the Bourns 3302X-3-502E trimmer potentiometer is ±25%.

What is the temperature coefficient of the 3302X-3-502E trimmer potentiometer?

The temperature coefficient of the 3302X-3-502E trimmer potentiometer is ±250ppm/°C.

How is the Bourns 3302X-3-502E trimmer potentiometer mounted?

The Bourns 3302X-3-502E trimmer potentiometer is designed for surface mount.

What type of termination does the 3302X-3-502E trimmer potentiometer use?

The 3302X-3-502E trimmer potentiometer uses J lead termination.

What is the standard packaging for the Bourns 3302X-3-502E trimmer potentiometer?

The Bourns 3302X-3-502E trimmer potentiometer is supplied in tape and reel packaging with 2000 pcs./7" reel.
