| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Contact Positioner | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| Lead Style | |
| Stripping Length | |
| Termination Style | |
| Type | |
| Wire Gauge (AWG) | |
| Wire Gauge (mm²) | |
| Wire Gauge or Range | |
| recommended_crimp_tool |

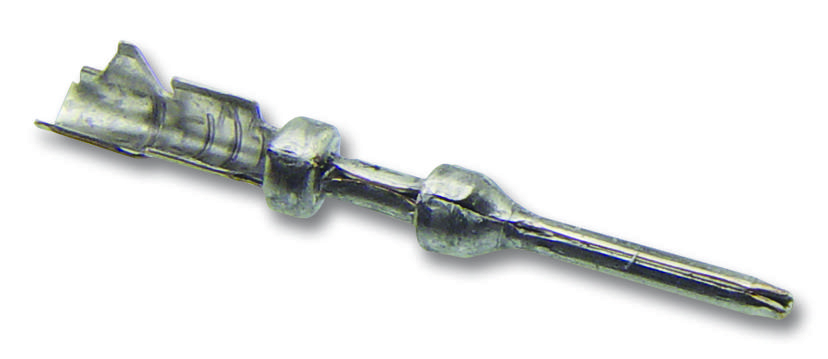

This crimp pin contact from ITT Cannon is designed for use with circular connectors requiring SS20 size contacts. It accepts wire gauges 16-20 AWG (0.5-1.0 mm²) and is machined from copper alloy with a silver plating for good conductivity and corrosion resistance. Termination is by crimping, with a recommended stripping length of 6.5 mm.
For reliable installation, the recommended hand crimp tool is M22520-1-01, with a pneumatic alternative WA27F-CE also available. A contact positioner (120090-0114) ensures proper alignment during crimping. The contact is listed in ITT Cannon's Sure-Seal series of harsh environment connector components.
Typical applications include aerospace, defense, and industrial interconnect systems where robust and reliable pin contacts are required. The machined construction provides consistent mechanical and electrical performance across temperature and vibration environments.
| Qty | Low | High |
|---|---|---|
| 500+ | $7.32 | $7.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16-20 AWG (0.5-1.0 mm²).
Crimp.
Silver.
SS20.
Hand crimp tool M22520-1-01 or pneumatic crimp tool WA27F-CE, with contact positioner 120090-0114.
6.5 mm +0.3 mm.
