| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

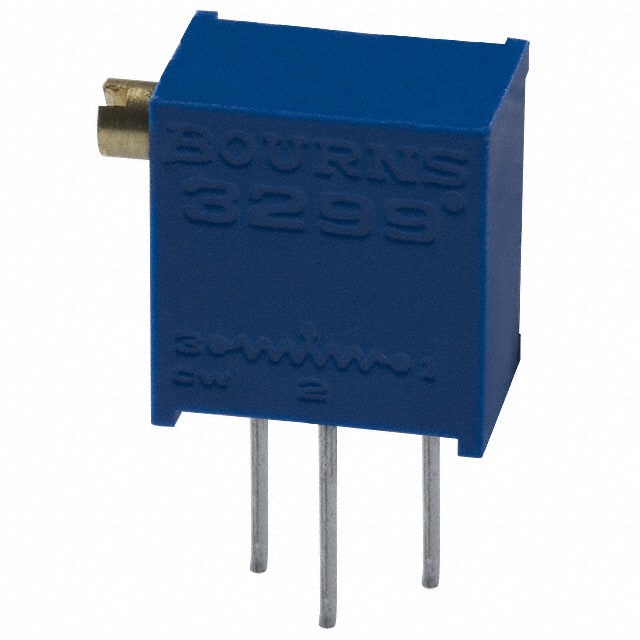

The Bourns 3299Z-1-101LF is a 3/8 inch square, multiturn, cermet trimming potentiometer designed for industrial applications. It offers a standard resistance range from 10 to 2 megohms, with this specific unit rated at 100 Ohms and a tolerance of ±10%. The potentiometer can handle a power rating of 0.5W at 70°C and operates within a temperature range of -55°C to +125°C.
Featuring a side adjustment type and through hole mounting with PC pin termination, this component is suitable for various circuit adjustments. The effective travel is 25 turns, and it has an infinite resolution. Environmental characteristics include resistance to vibration (20 G) and shock (100 G), with a load life of 1000 hours at 0.5W and 70°C.
The physical dimensions are rectangular, measuring 0.395" x 0.240" face (10.03mm x 6.10mm). The standard packaging is 50 pieces per tube. This model is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The power rating is 0.5W at 70°C.
The temperature coefficient is ±100 ppm/°C.
It is a through hole mounting type with PC pins.
The size is rectangular, measuring 0.395" x 0.240" face (10.03mm x 6.10mm).
The standard packaging is 50 pieces per tube.
