| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
192 pcs
|
192 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

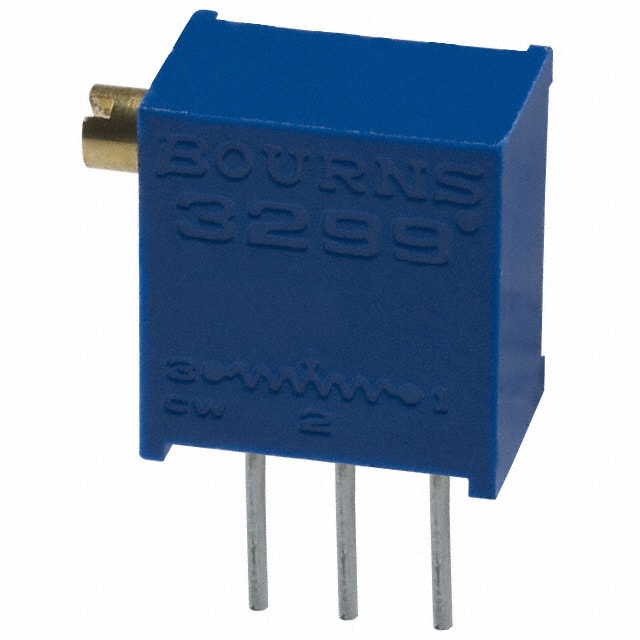

The Bourns 3299X-1-203LF is a 3/8 inch square, multiturn, cermet trimming potentiometer designed for industrial applications. It offers a standard resistance of 20 kΩ with a tolerance of ±10% and a power rating of 0.5W at 70°C.
This model features 25 turns for precise adjustment and a side adjustment type. The termination style is PC pins, suitable for through-hole mounting. The resistive material is cermet, ensuring stability and reliability.
Environmental characteristics include a wide operating temperature range of -55°C to +125°C and a temperature coefficient of ±100 PPM/°C. It is sealed and designed to withstand various environmental conditions.
The physical dimensions are rectangular, measuring 0.395" x 0.240" face (10.03mm x 6.10mm). It is supplied in tube packaging, with 50 pieces per tube.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standard resistance value is 20 kΩ.
The tolerance is ±10%.
The power rating is 0.5W at 70°C.
The temperature coefficient is ±100 PPM/°C.
It has 25 turns for adjustment.
The resistive material is Cermet.
The dimensions are rectangular, 0.395" x 0.240" face (10.03mm x 6.10mm).
