| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Inside Diameter | |
| Barrel Type | |
| China RoHS | |
| Contact Finish | |
| Contact Material | |
| EU ELV | |
| Features | |
| Government Qualified | |
| Halogen Content | |
| Insulation | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Number of Holes | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Product Length | |
| Stud | |
| Stud Diameter | |
| Stud Size | |
| Terminal Orientation | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Tongue Thickness | |
| Width | |
| Wire Gauge | |
| Wire Insulation Support | |
| Wire Size (CMA) |

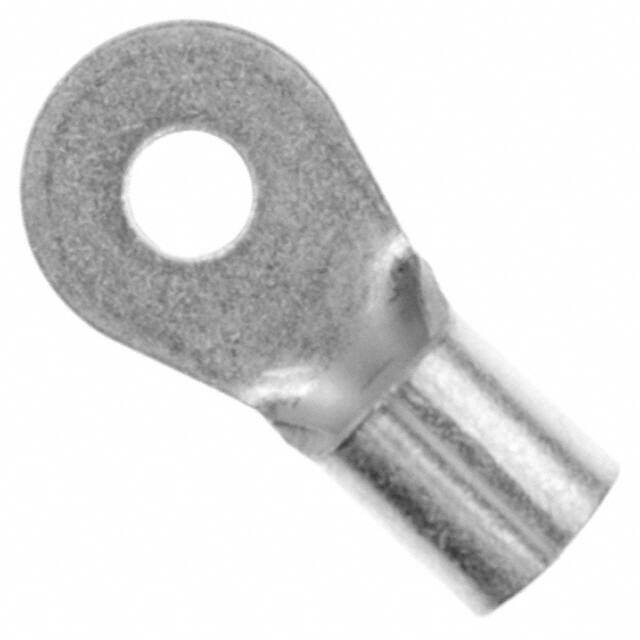

This is a closed ring tongue terminal from TE Connectivity's SOLISTRAND series. It is designed for 8 AWG wire with a wire size range of 13100-20800 CMA. The terminal has a stud size of M4/#8 and a stud diameter of 4.34 mm.
The terminal features a tin-plated copper contact with a brazed seam and serrated termination for secure crimping. It is non-insulated and does not include wire insulation support. The barrel is closed and straight, with a barrel inside diameter of 4.37 mm.
The product has a tongue thickness of 1.22 mm and an overall length of 23.70 mm. It is rated for a maximum operating temperature of 170°C. The terminal is RoHS3, REACH, and EU ELV compliant, with low halogen content.
Packaging is loose piece in quantities of 100. This terminal is suitable for free hanging (in-line) mounting and is commonly used in power distribution and industrial applications.
It fits 8 AWG wire with a wire size range of 13100-20800 CMA.
It accommodates both M4 and #8 stud sizes.
No, it is non-insulated.
The maximum operating temperature is 170°C.
The contact is made of copper with a tin plating.
It is packaged as loose pieces in quantities of 100.
Yes, it is RoHS3 compliant per the datasheet.
